Abstract

Single-view 3D generative models have achieved impressive visual quality, yet they are not designed to satisfy structural or functional requirements, and in practice, often fall short. Symmetry is one such requirement: violations, even subtle ones, on symmetry can render a model physically unusable. We present SymTRELLIS, a method that enforces arbitrary finite point group symmetries (rotational, reflectional, and polyhedral) during the flow-based 3D generation of TRELLIS.2, without retraining the underlying VAE or flow model. Our key idea is to approximate the latent-space action of spatial transformations as a learned linear operator on voxel latents, implemented as a lightweight spatial-transform latent mapper trained on generic, non-symmetric 3D data. At generation time, we enforce symmetry by averaging predicted flow velocities across all symmetry-equivalent transformations at each ODE step, a process we call velocity symmetrization. The symmetry specification can be estimated automatically from an initial TRELLIS.2 generation or supplied by the user, enabling deliberate fold manipulation beyond what the input image suggests. On a curated benchmark of 266 strictly symmetric objects spanning 2- to 20-fold rotations and polyhedral symmetry groups, SymTRELLIS substantially reduces all symmetry error metrics compared to TRELLIS.2, Hunyuan3D-2.1, and TripoSG, while maintaining reconstruction accuracy comparable to the base model.

Open full demo

Deploy the demo locally

ENV_TAG=torch2.9.0-cu130-py312
# Options:
# torch2.9.0-cu130-py312
# torch2.8.0-cu128-py312
# torch2.7.0-cu128-py311
# torch2.6.0-cu124-py310

mkdir -p \
  "$HOME/.cache/huggingface" \
  "$HOME/.config/huggingface" \
  "$HOME/.cache/triton"

docker run --rm --gpus all                                          \
  --user "$(id -u):$(id -g)"                                        \
  -p 7860:7860                                                      \
  -e HOME=/tmp                                                      \
  -e USER="$(id -un)"                                               \
  -e LOGNAME="$(id -un)"                                            \
  -e XDG_CONFIG_HOME=/config                                        \
  -e SYMTRELLIS_WEBUI_SESSION_TIMEOUT_SECONDS=315360000             \
  -e SYMTRELLIS_WEBUI_CLEANUP_INTERVAL_SECONDS=300                  \
  -e HF_HOME=/cache/huggingface                                     \
  -e HF_HUB_CACHE=/cache/huggingface/hub                            \
  -e TRITON_CACHE_DIR=/cache/triton                                 \
  -v "$HOME/.cache/huggingface:/cache/huggingface"                  \
  -v "$HOME/.config/huggingface:/config/huggingface:ro"             \
  -v "$HOME/.cache/triton:/cache/triton"                            \
  ghcr.io/symtrellis/symtrellis:inference-"$ENV_TAG"

Visuals

Uniform materials are used for clarity; texture-flow generation is supported but not shown in these visuals.

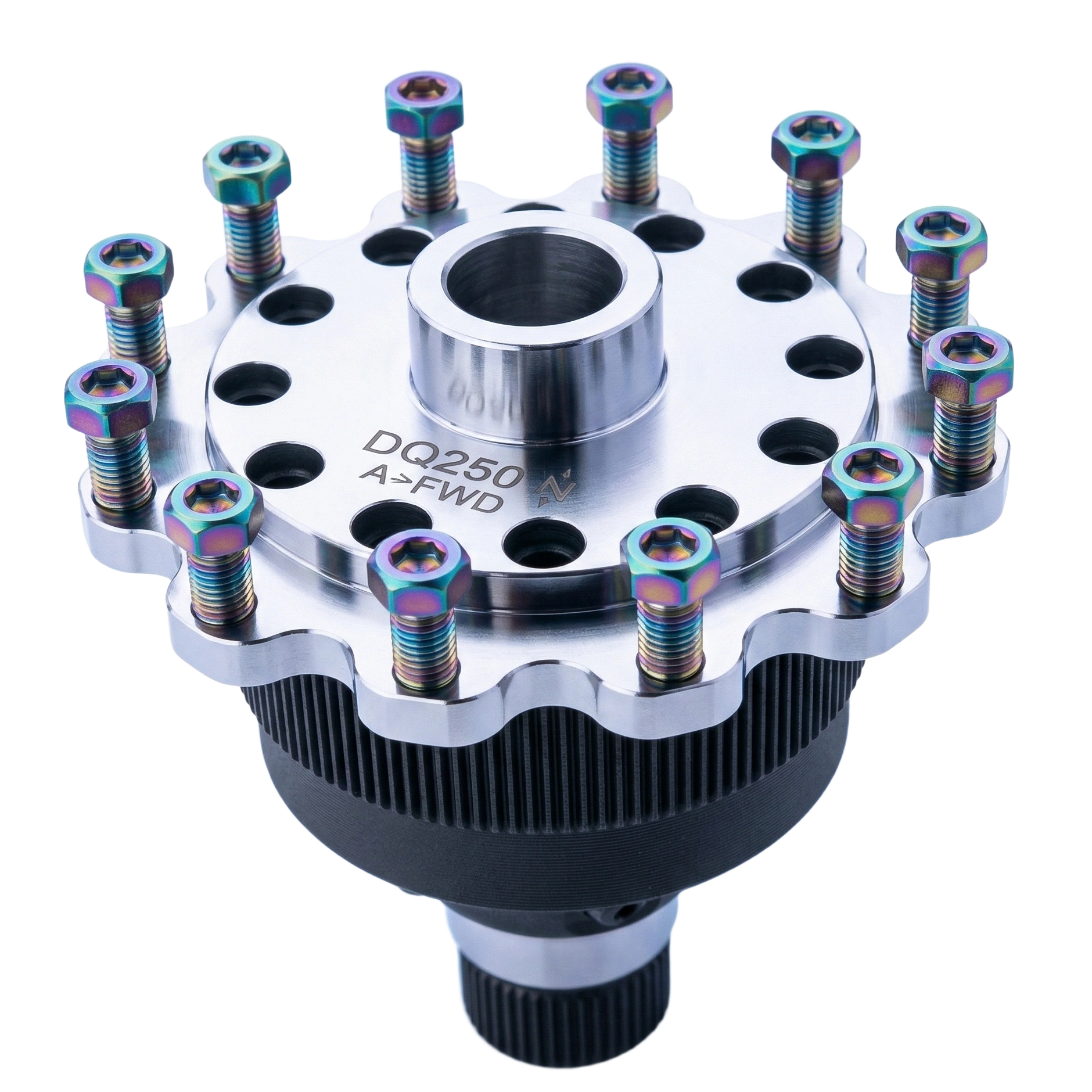

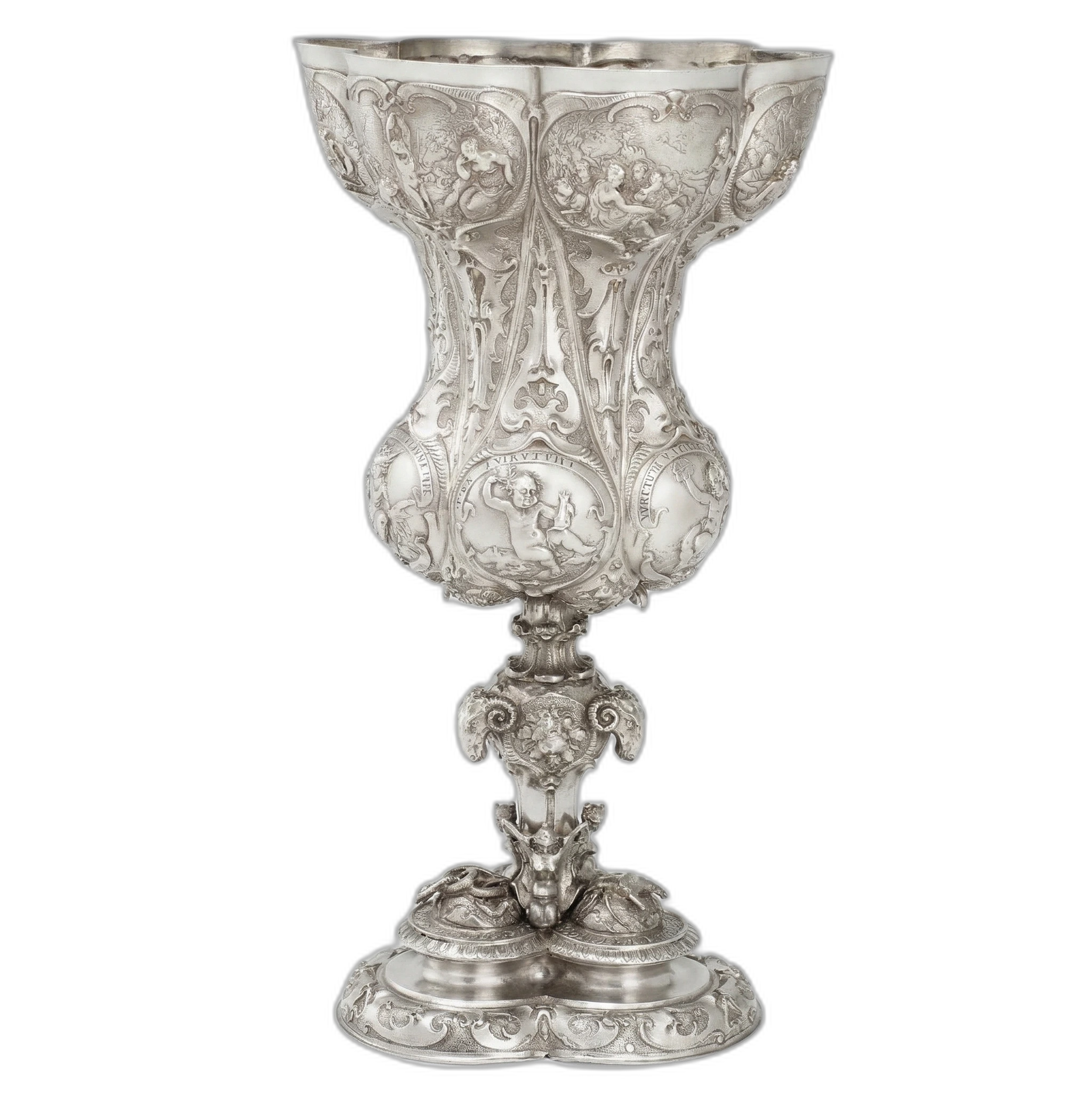

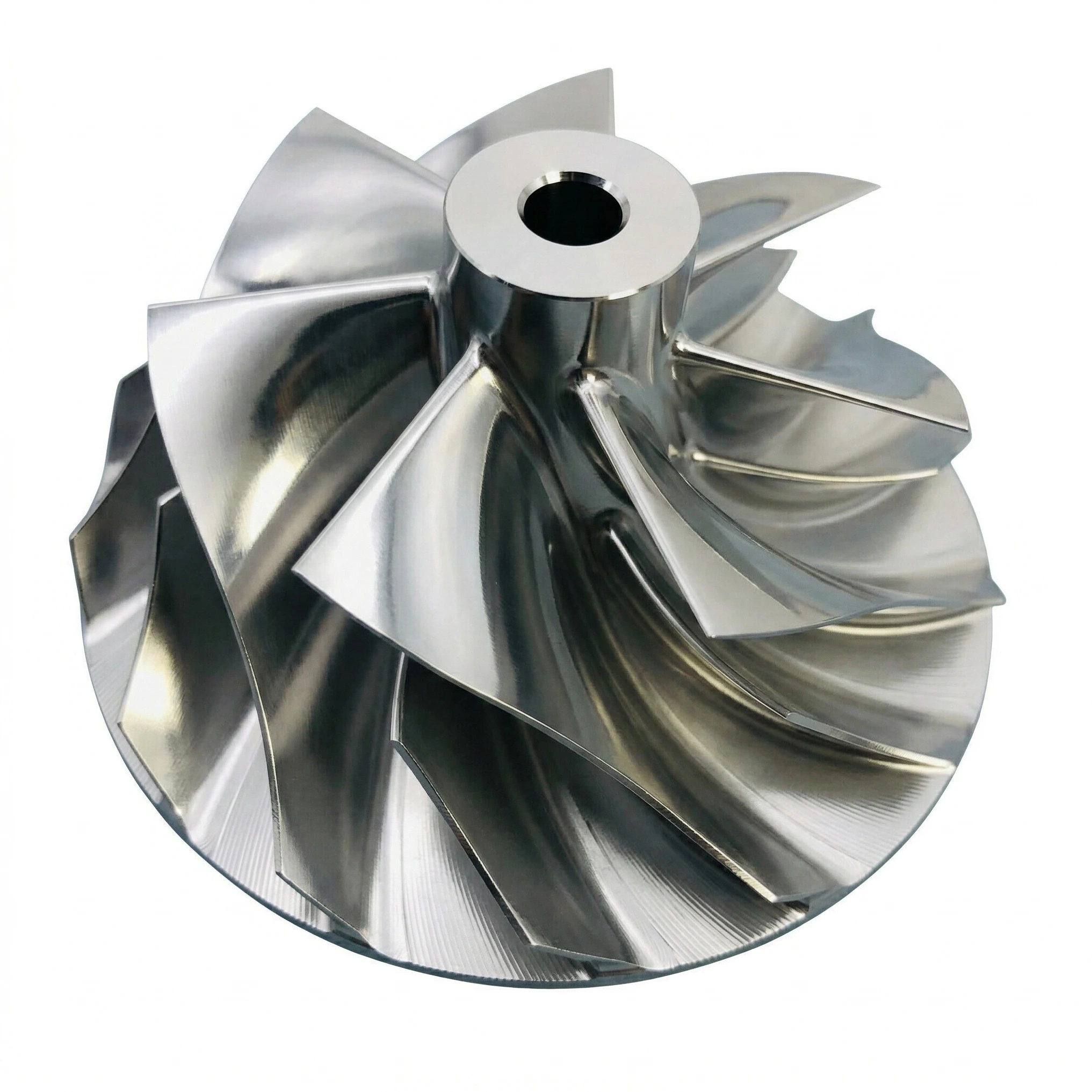

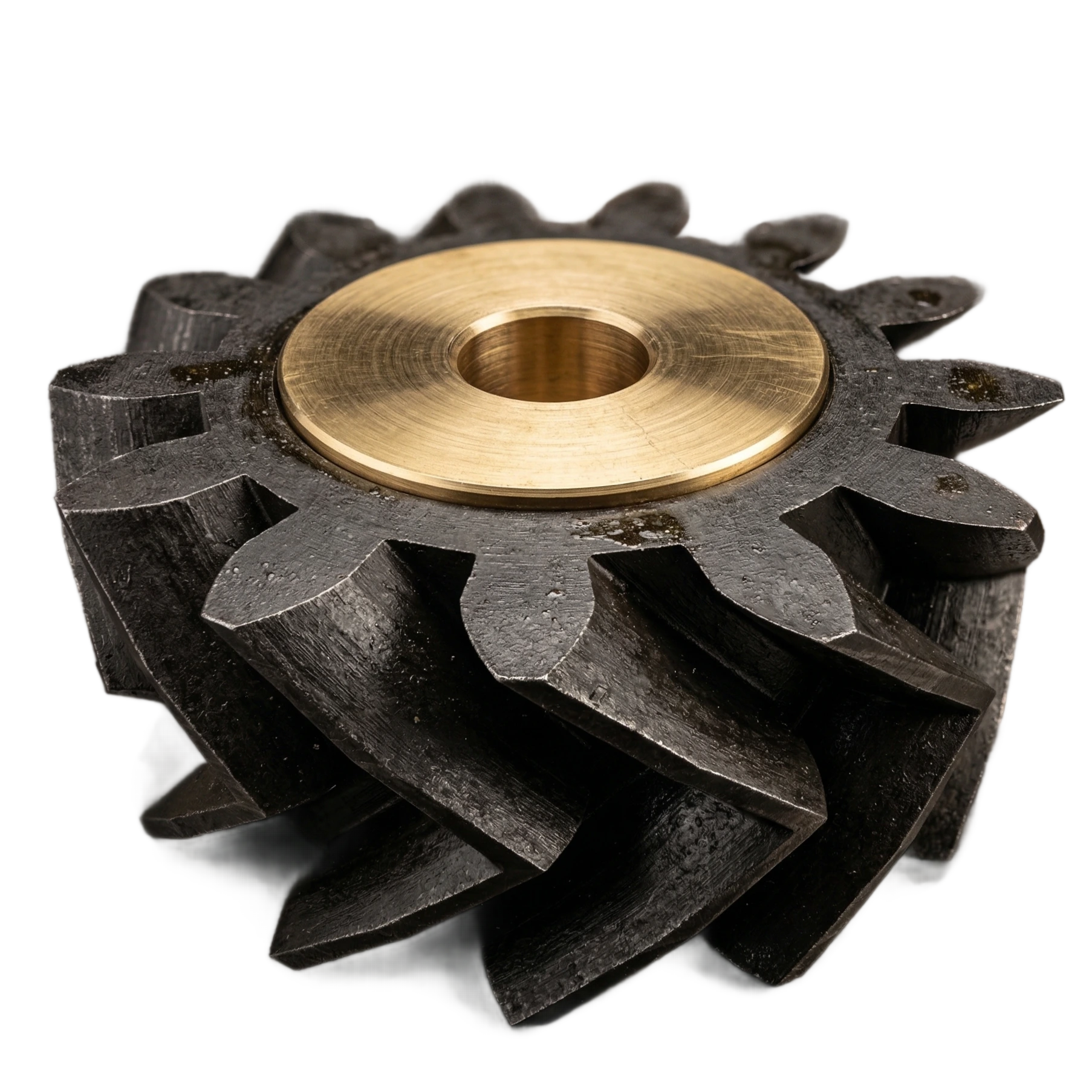

Input

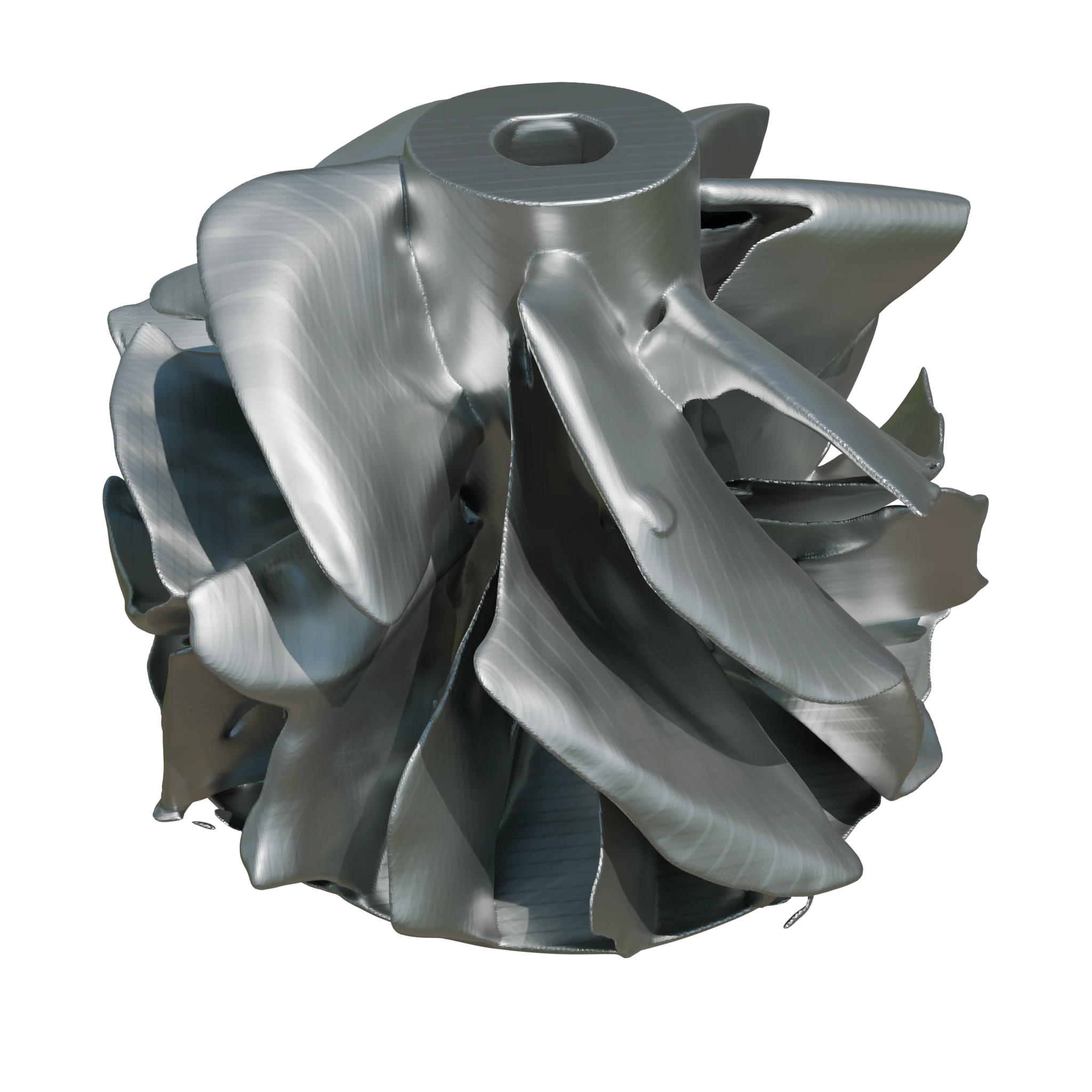

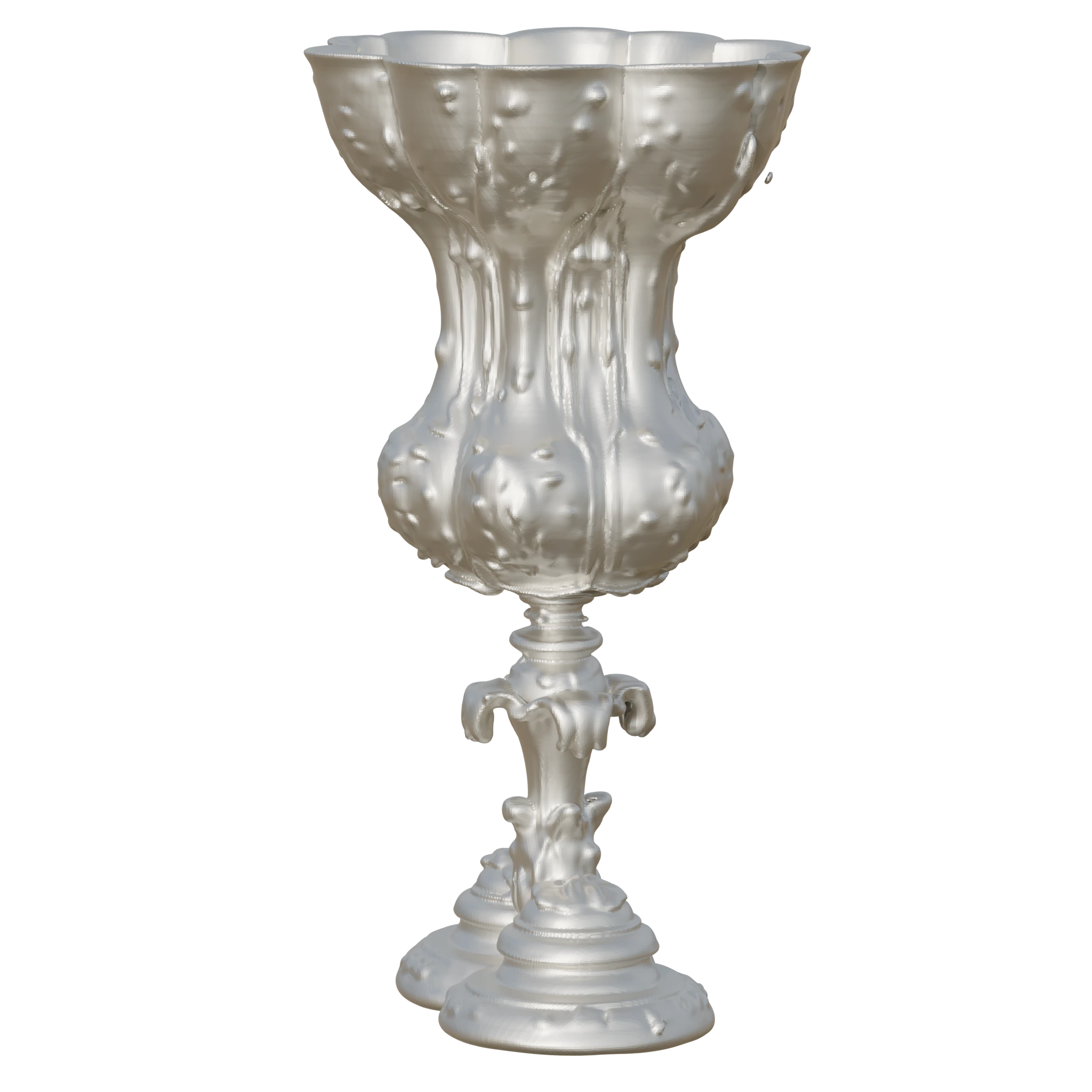

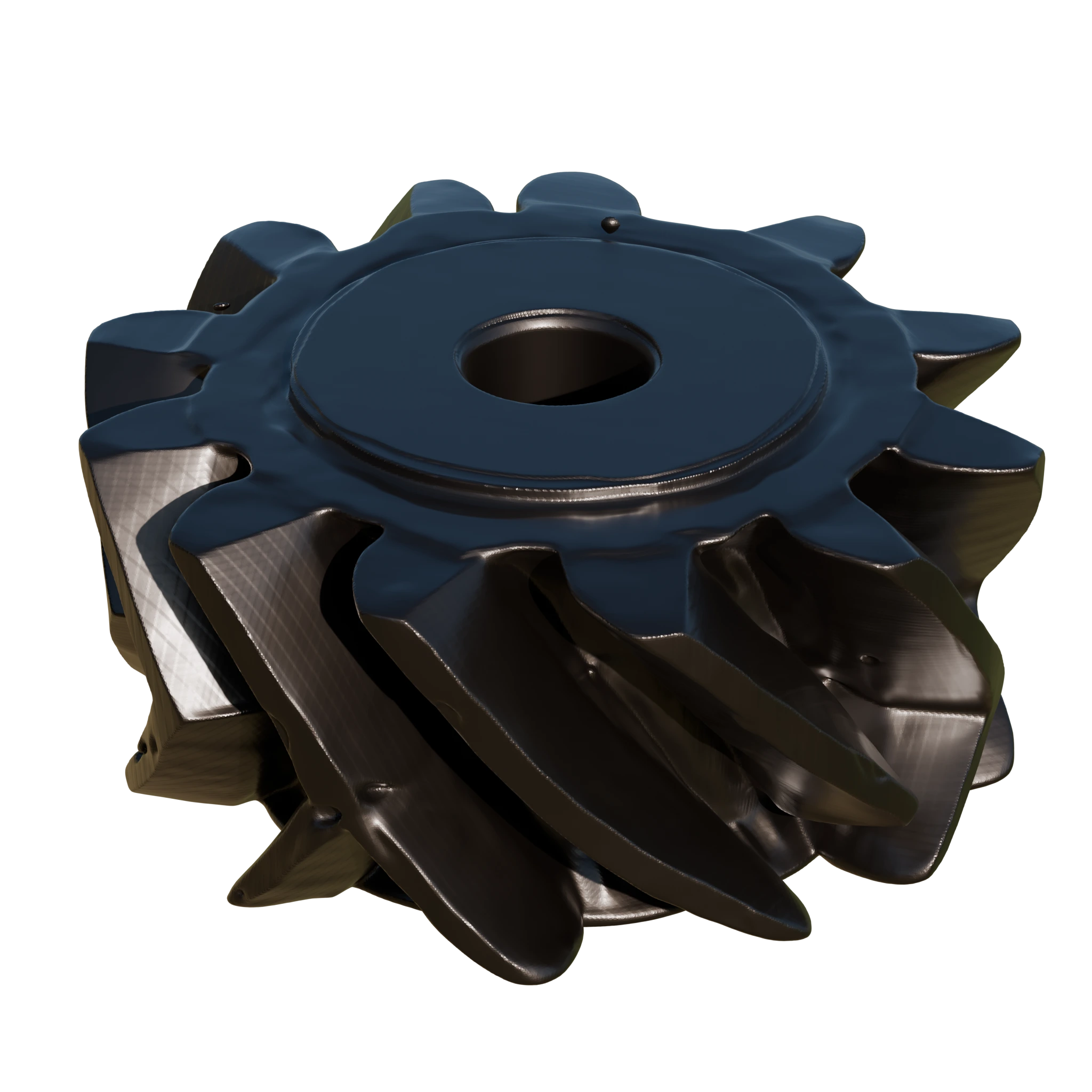

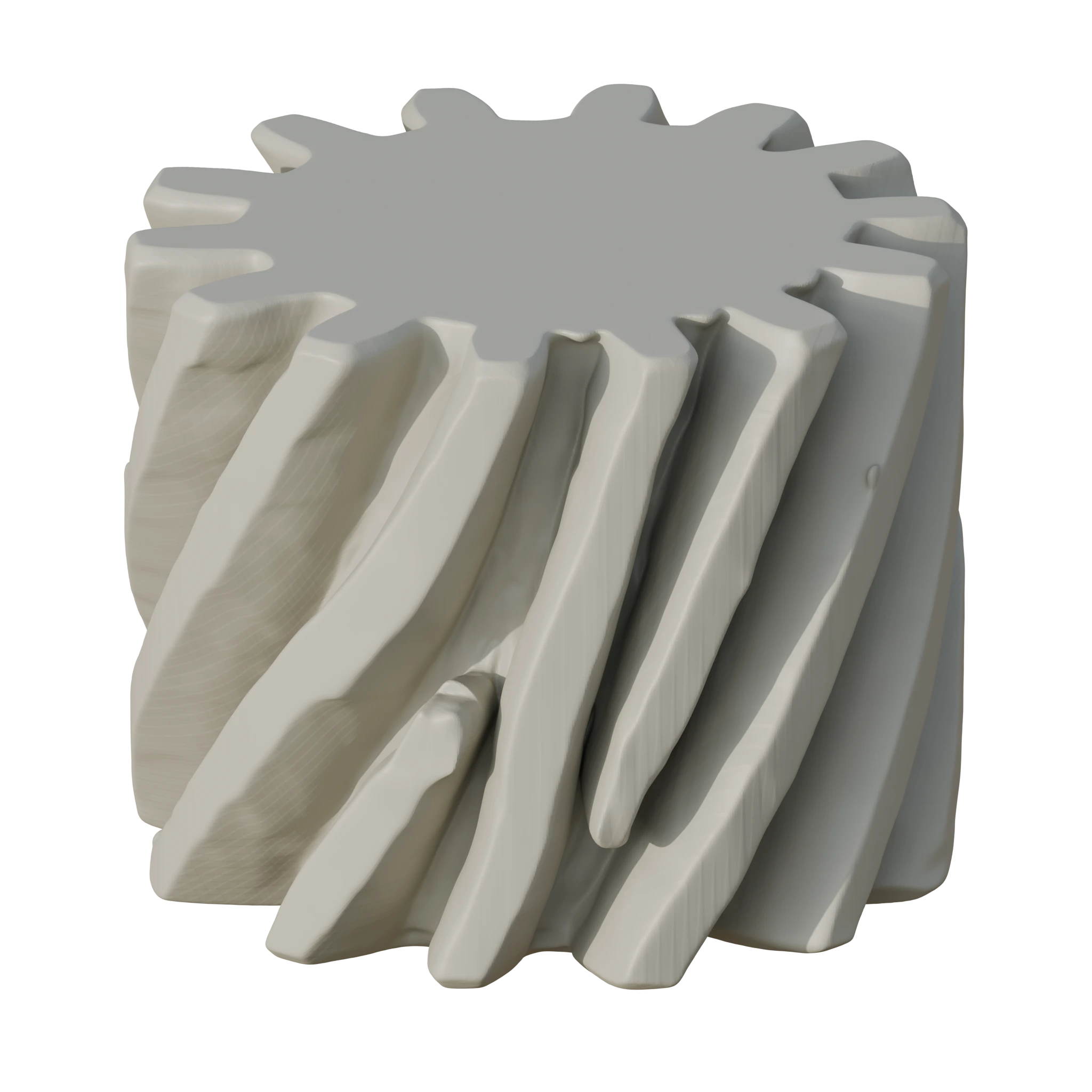

TripoSG

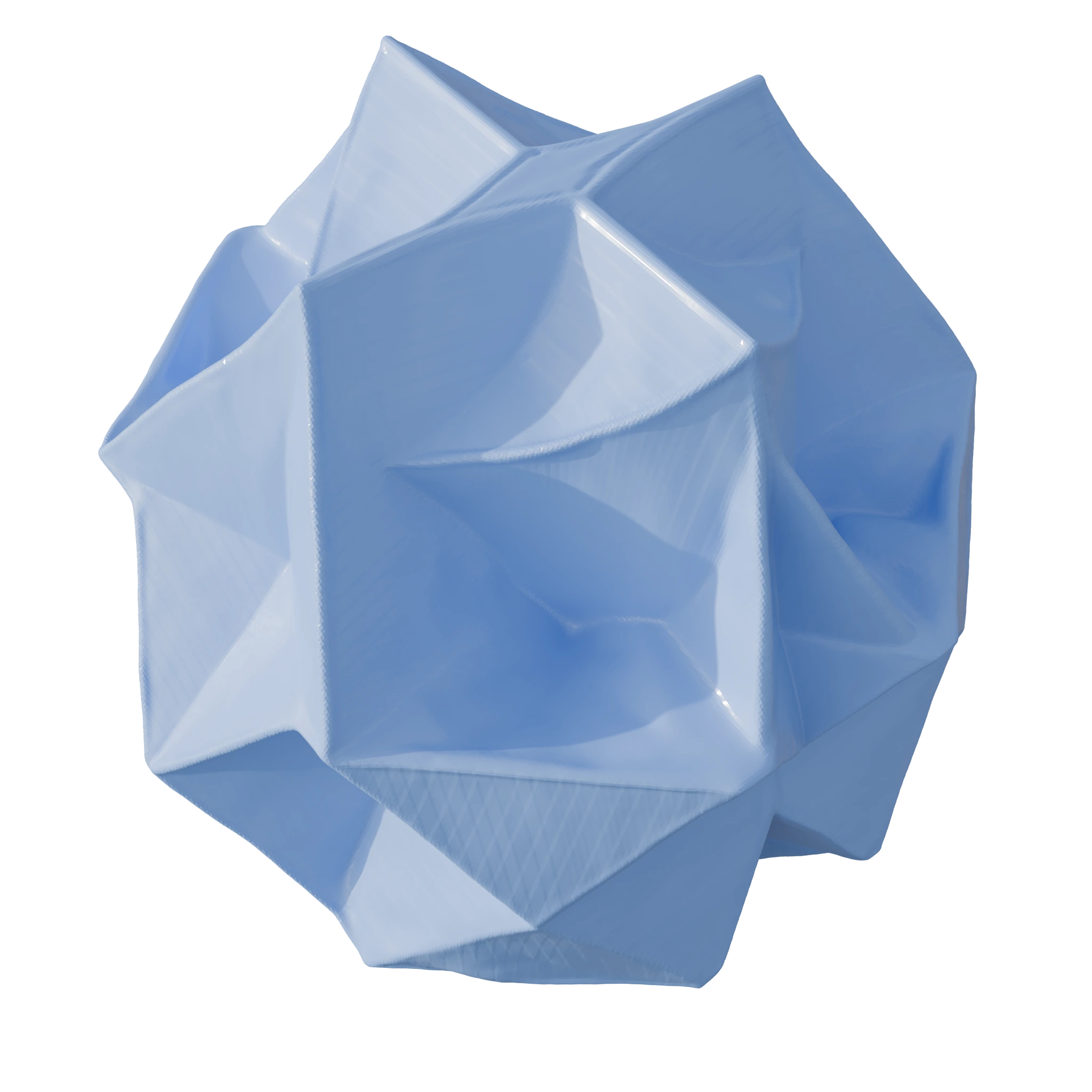

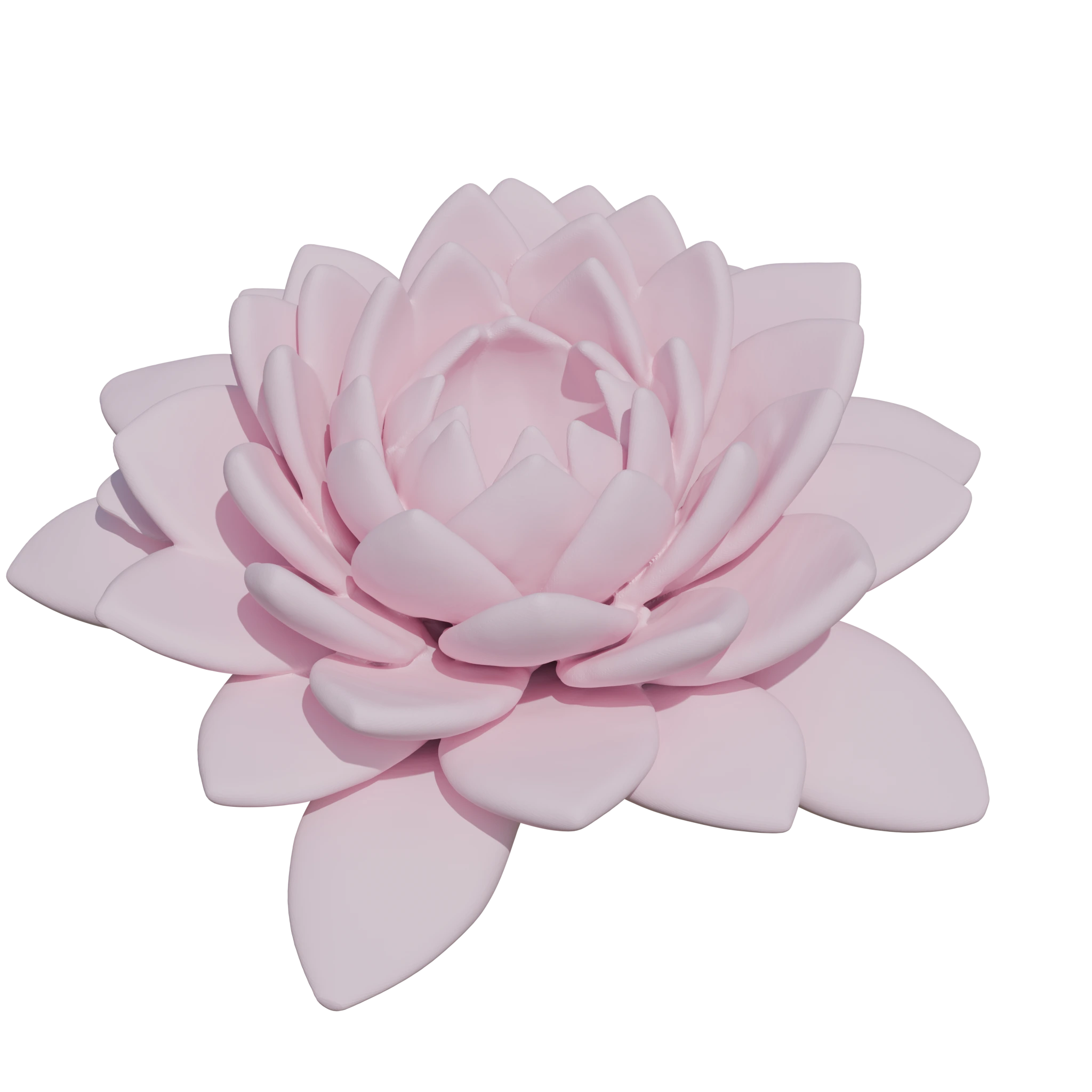

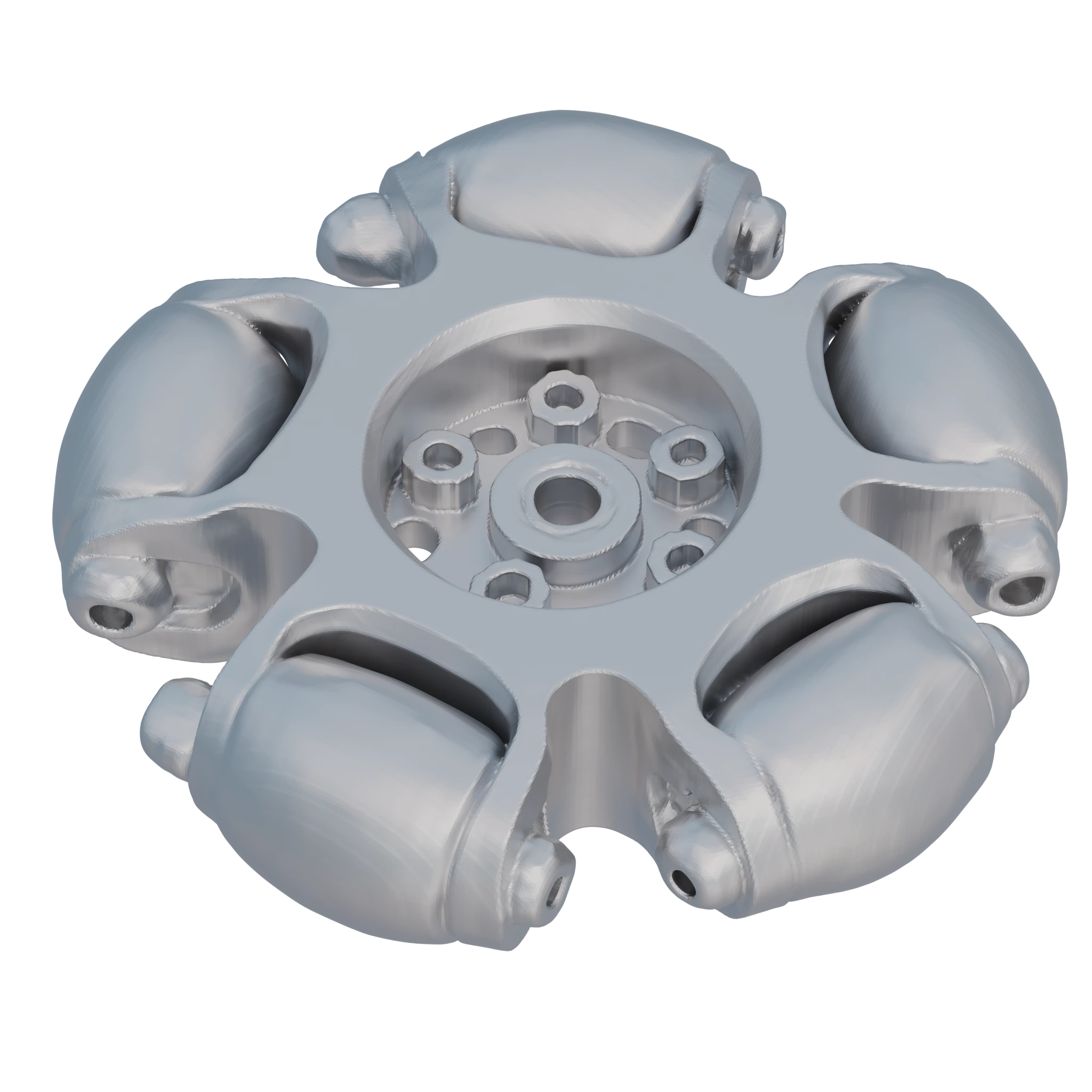

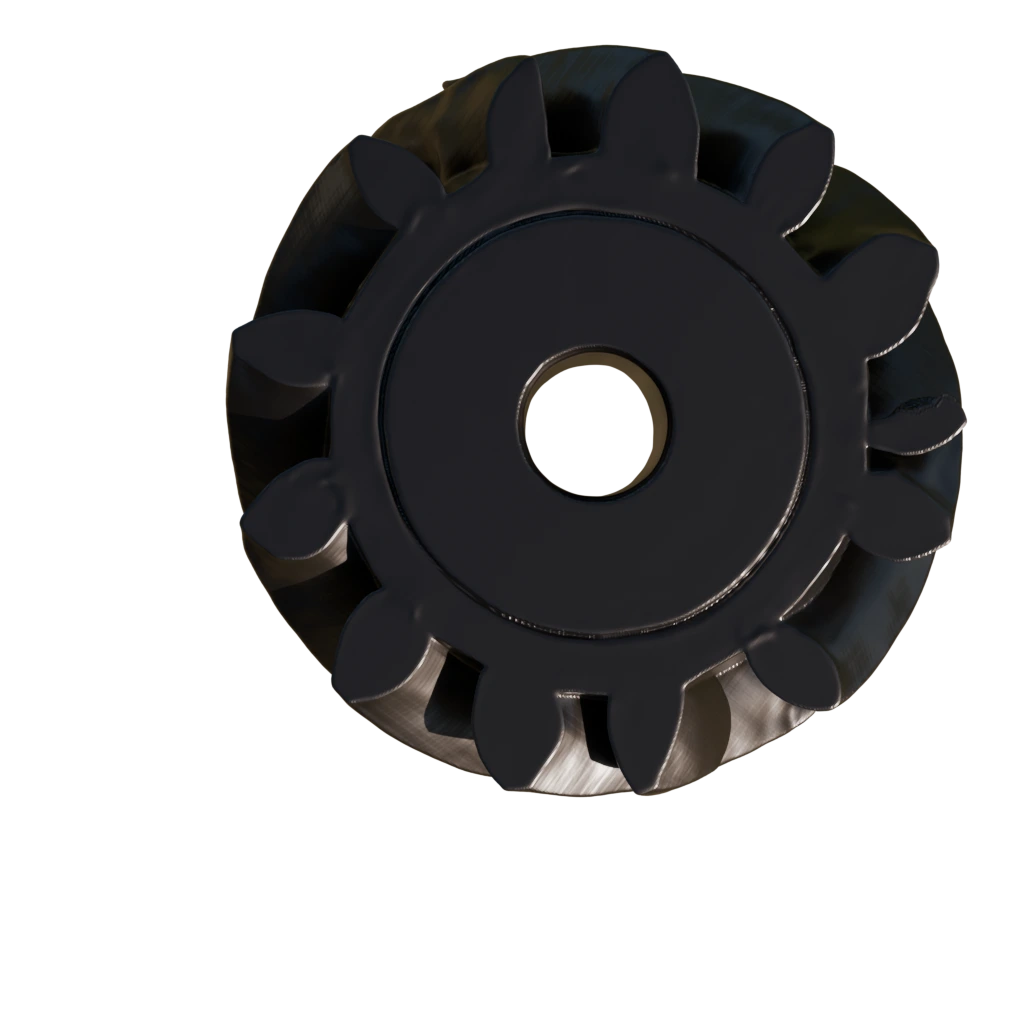

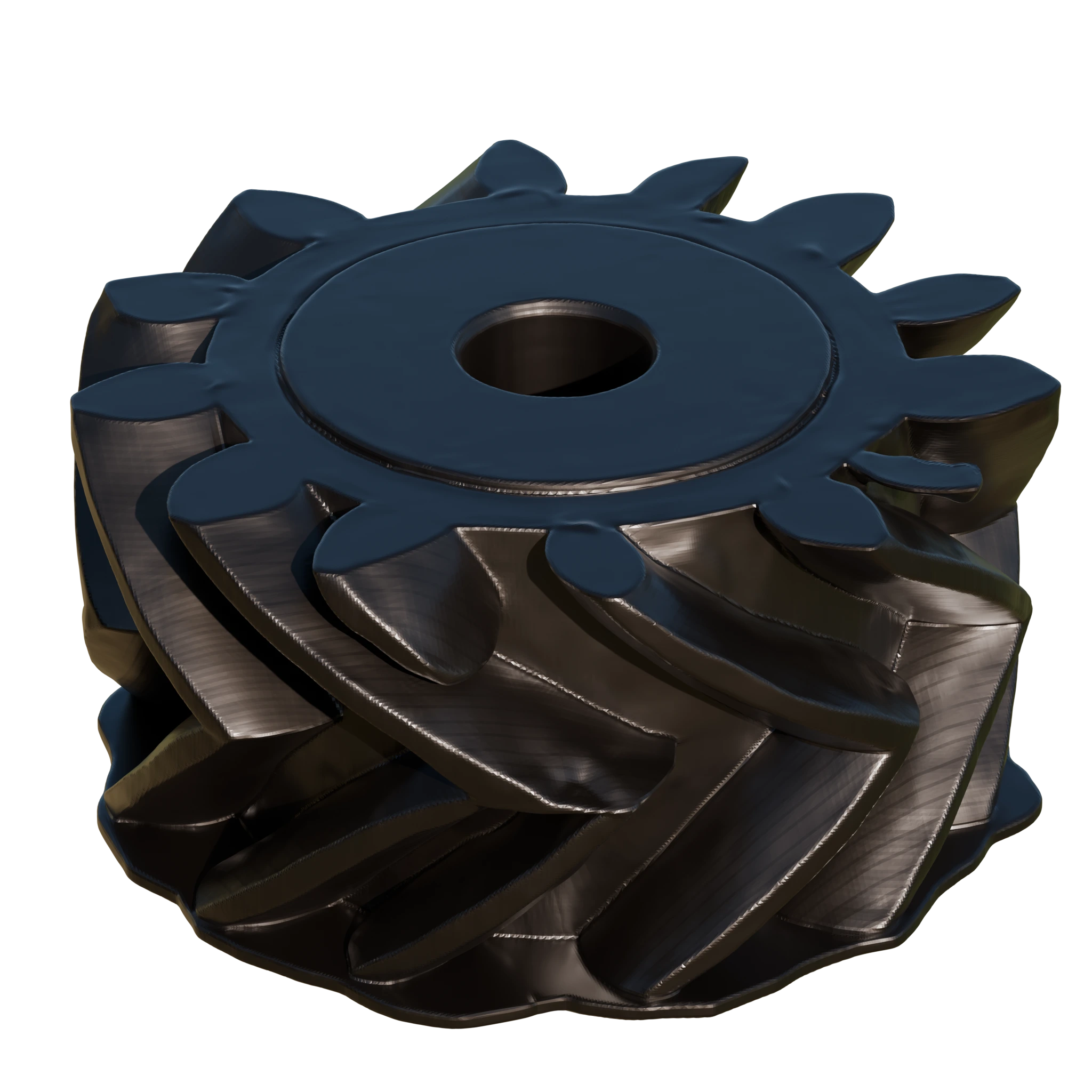

Hunyuan3D 2.1

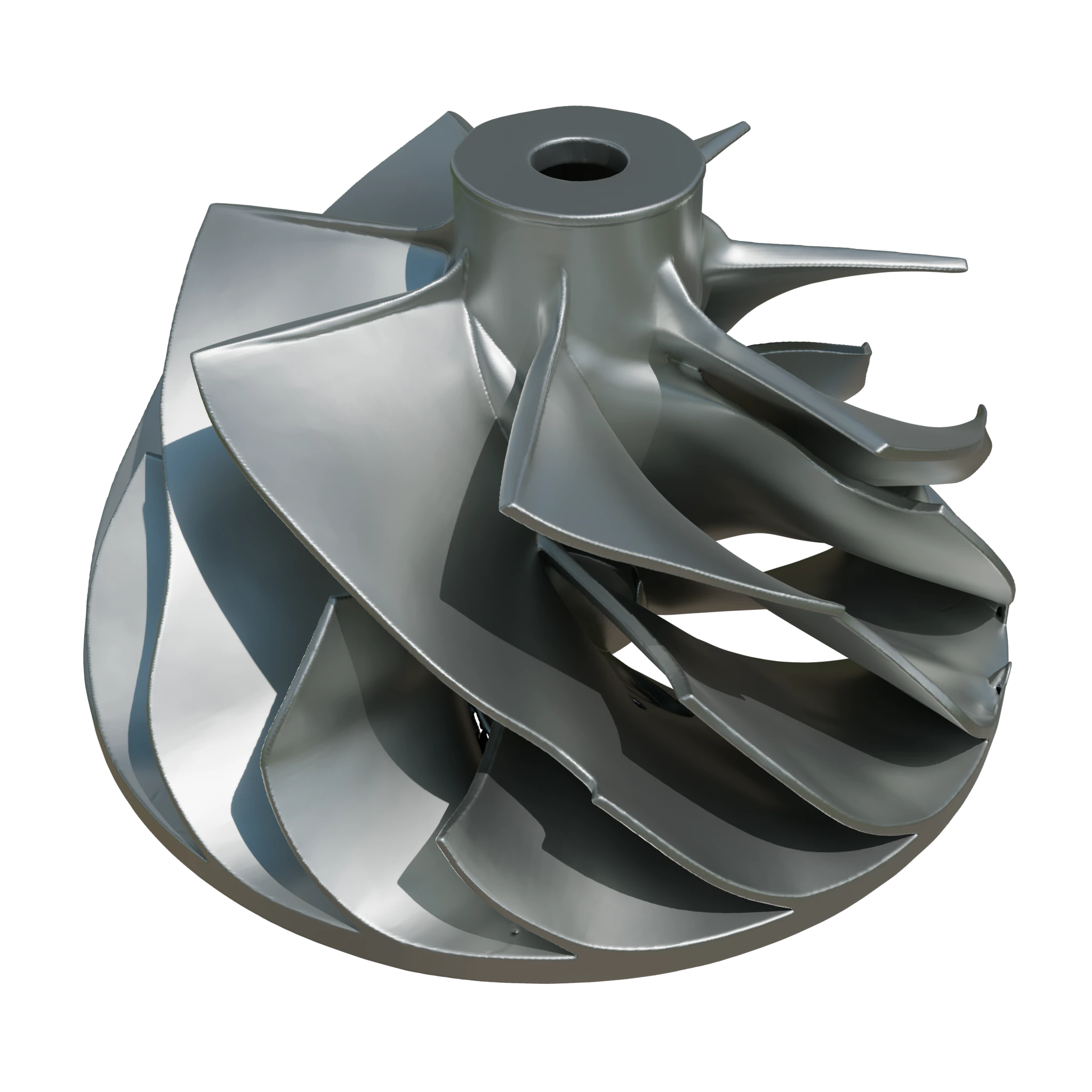

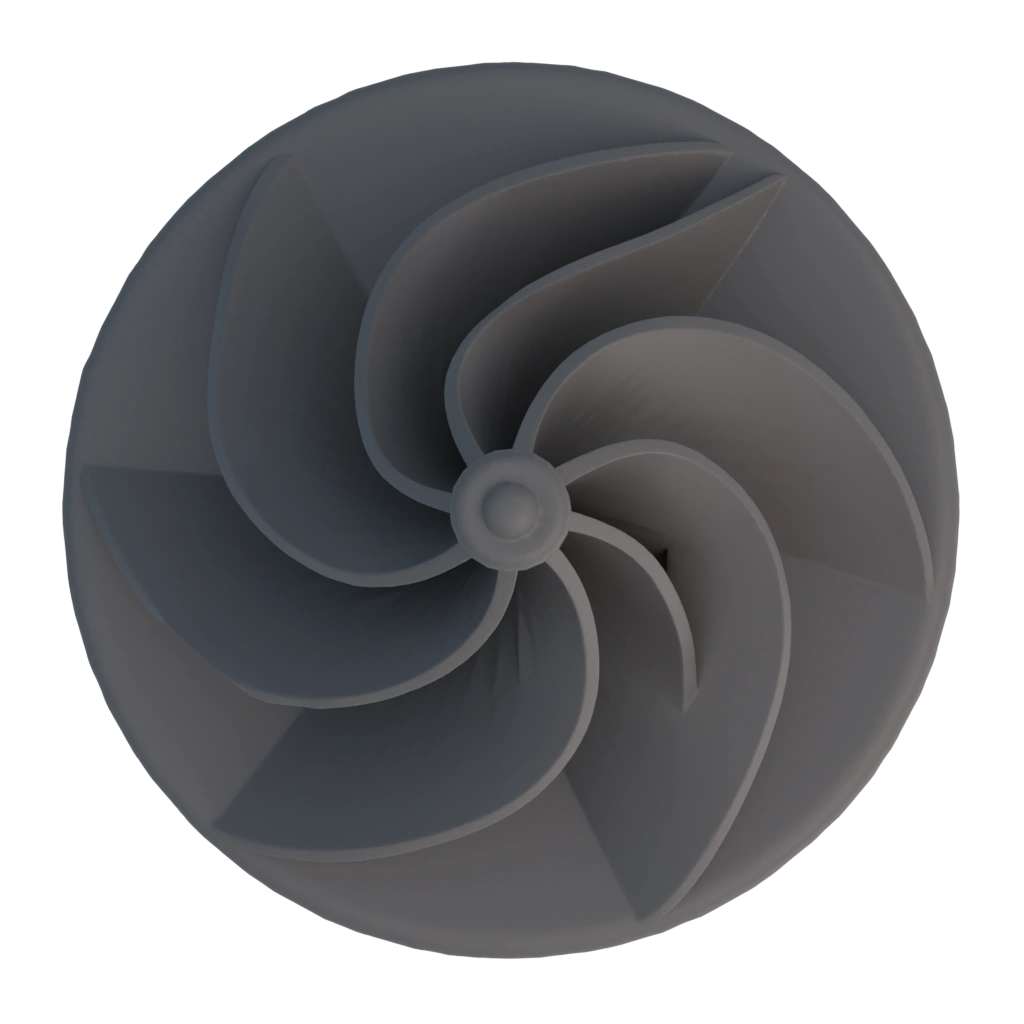

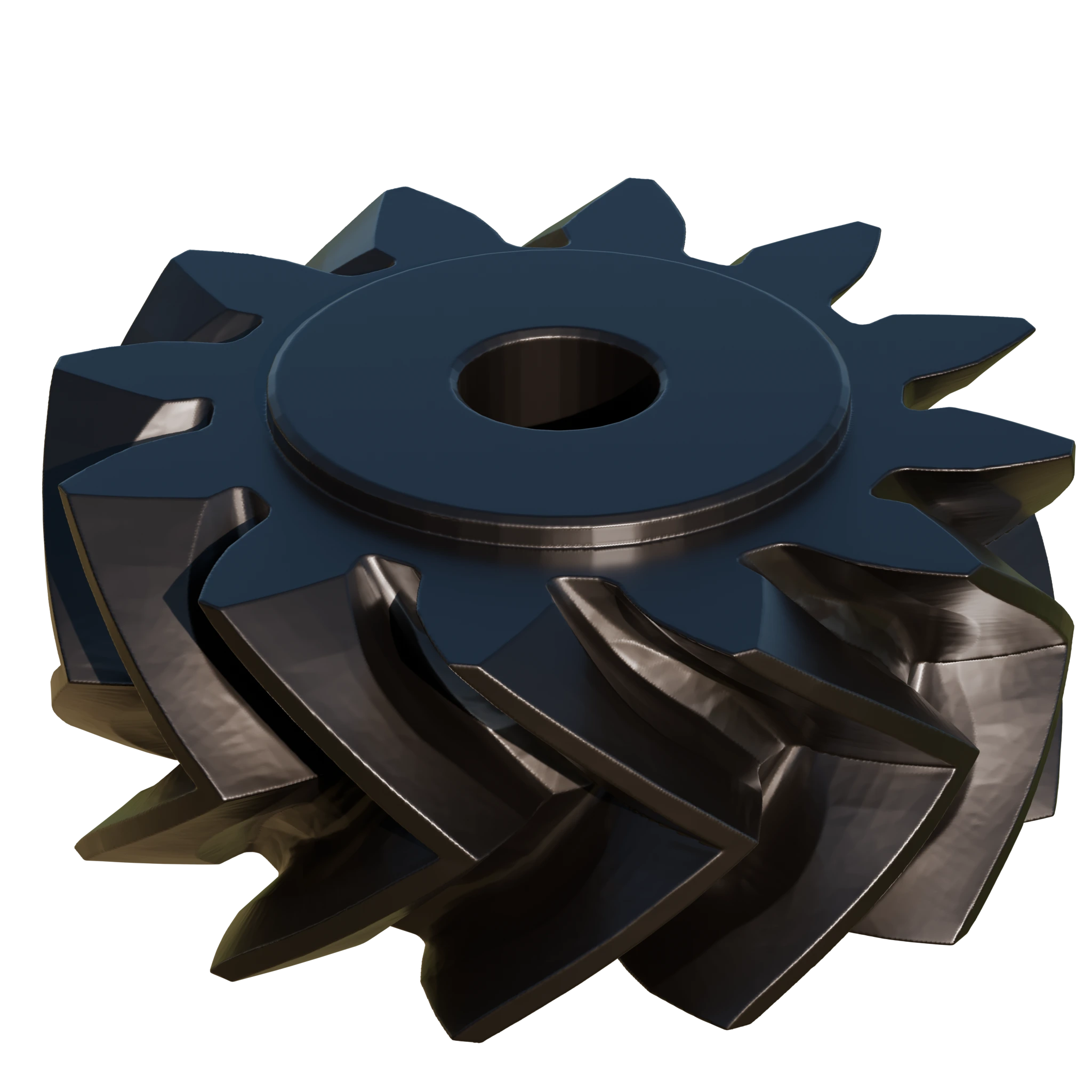

TRELLIS.2

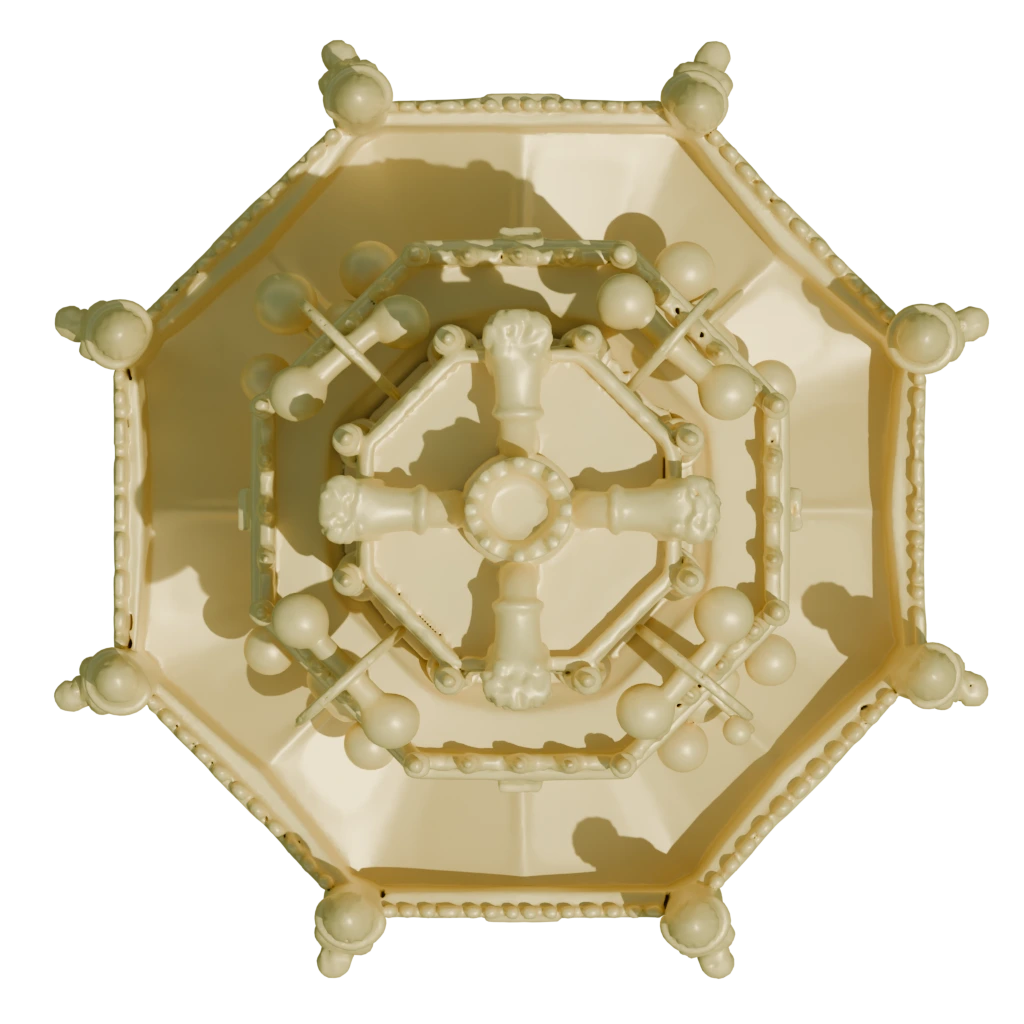

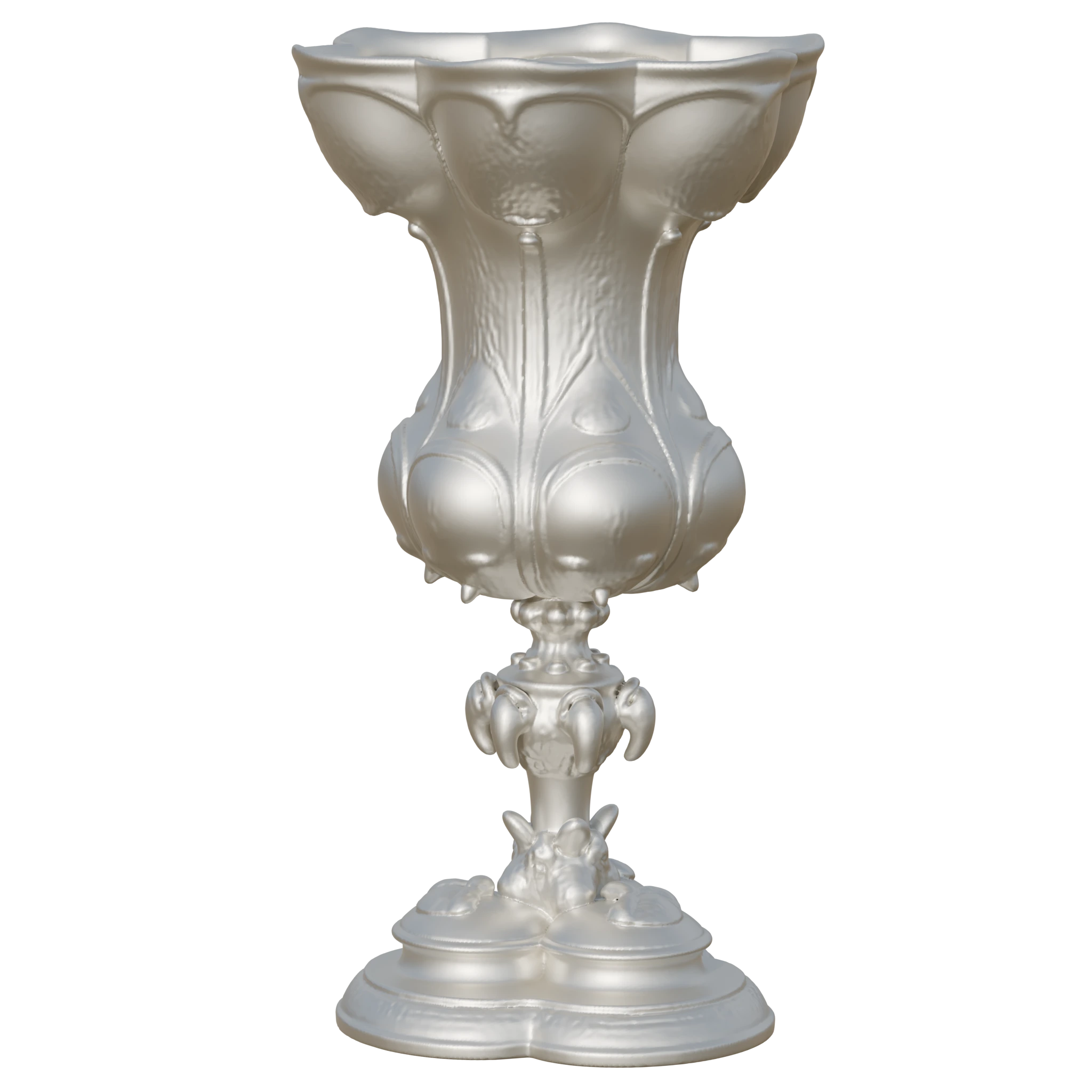

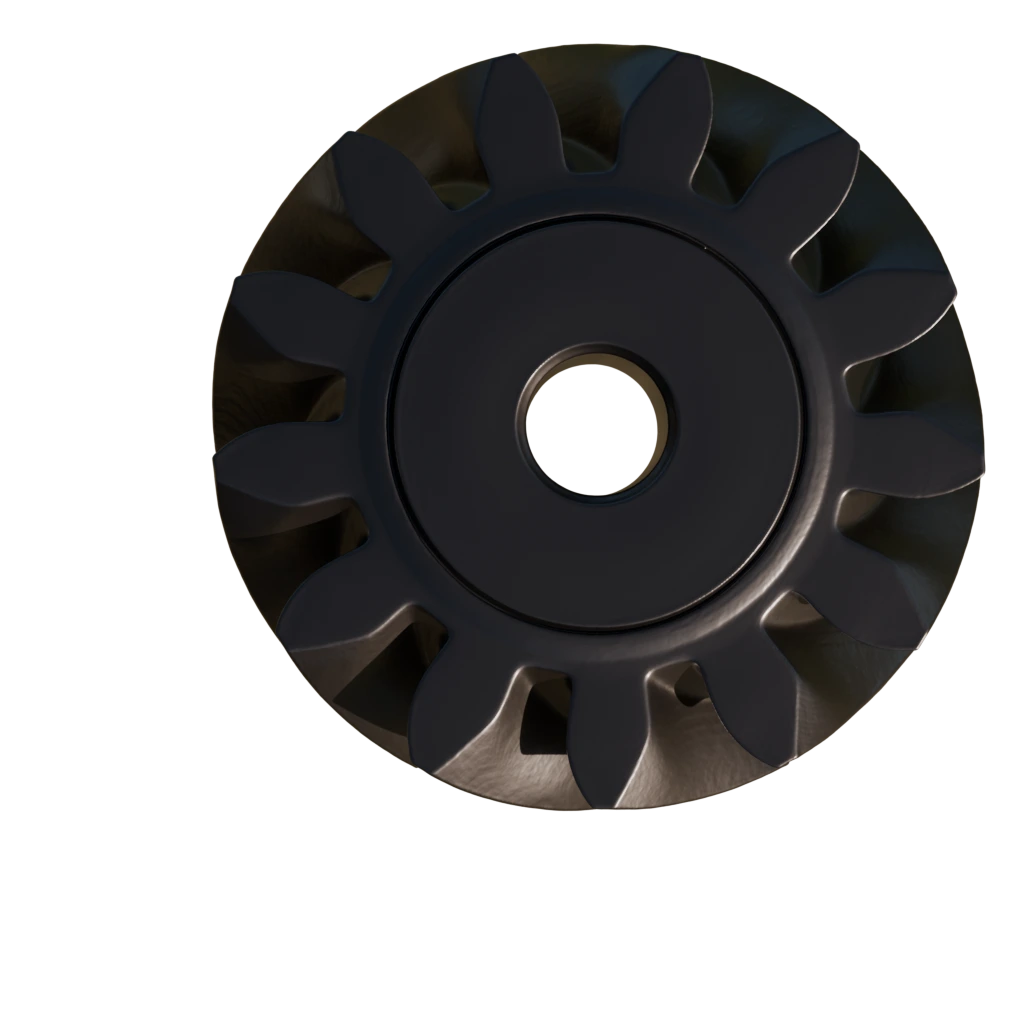

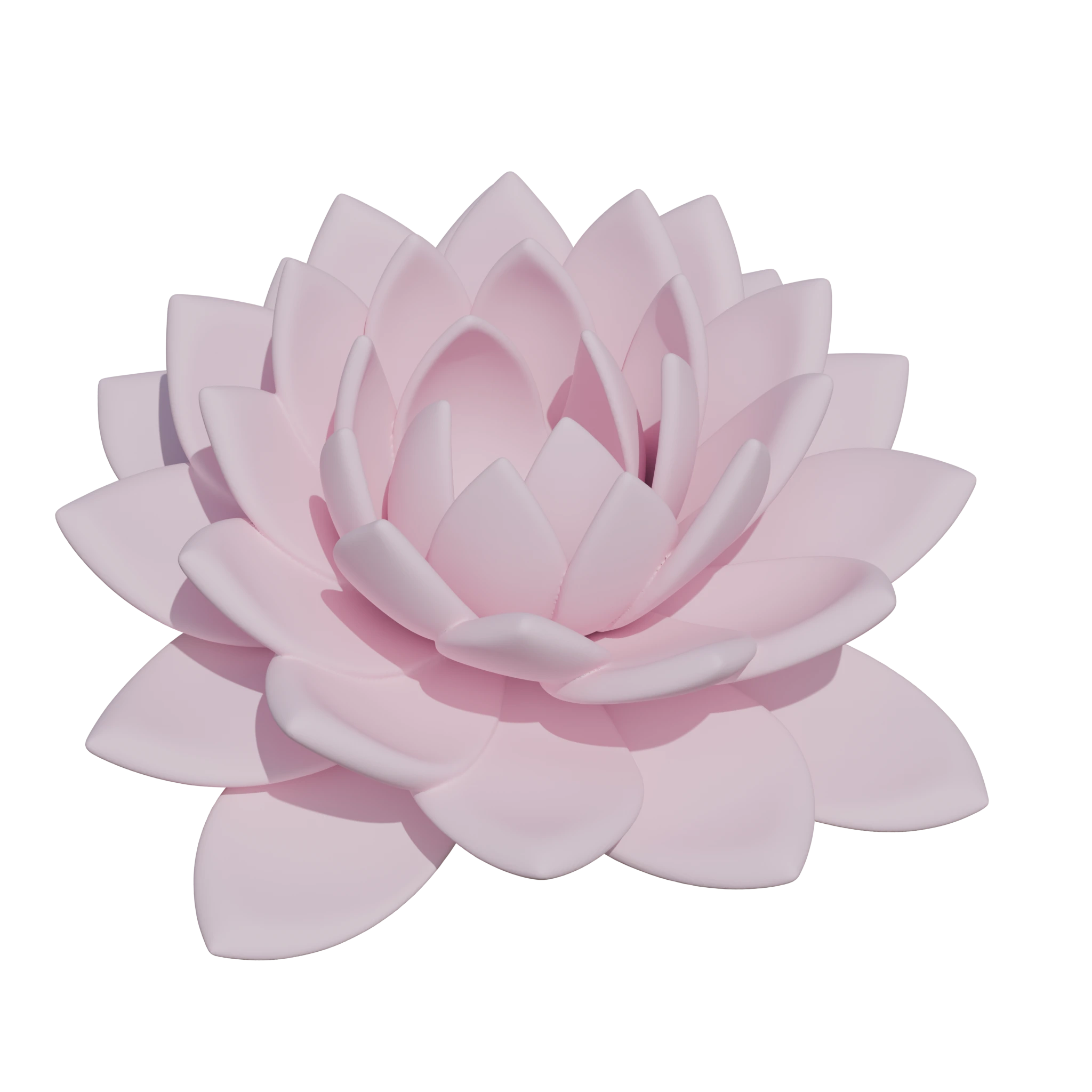

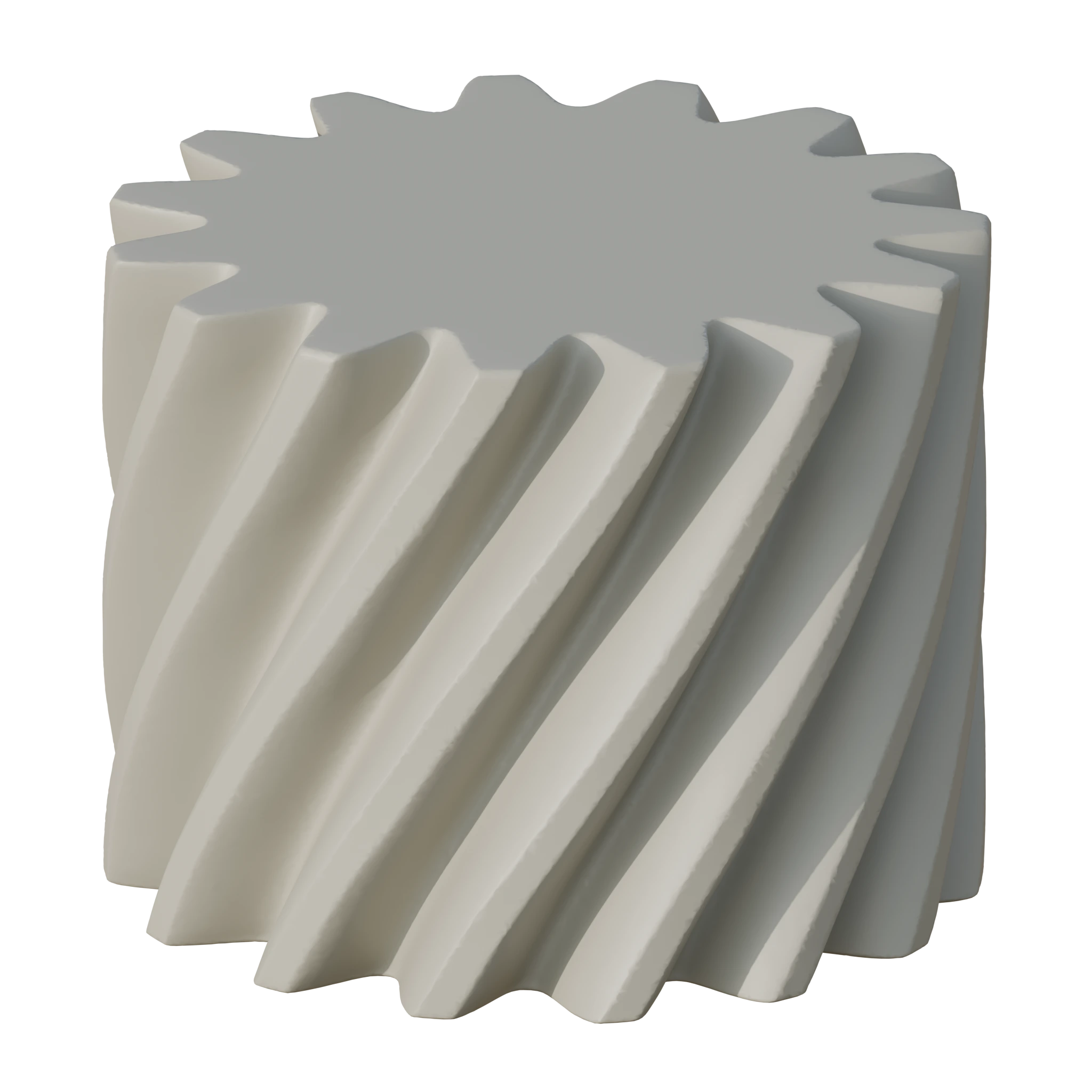

SymTRELLIS

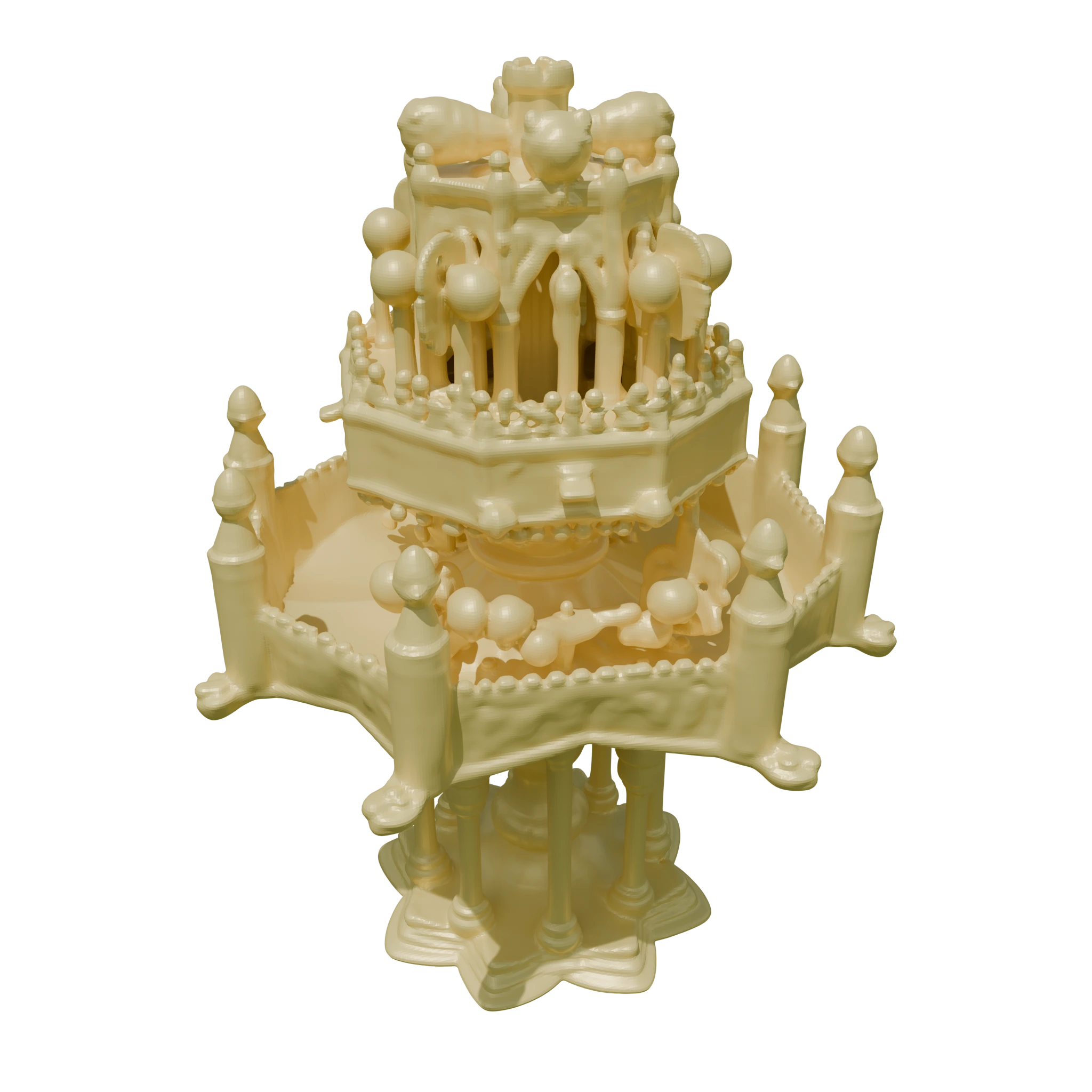

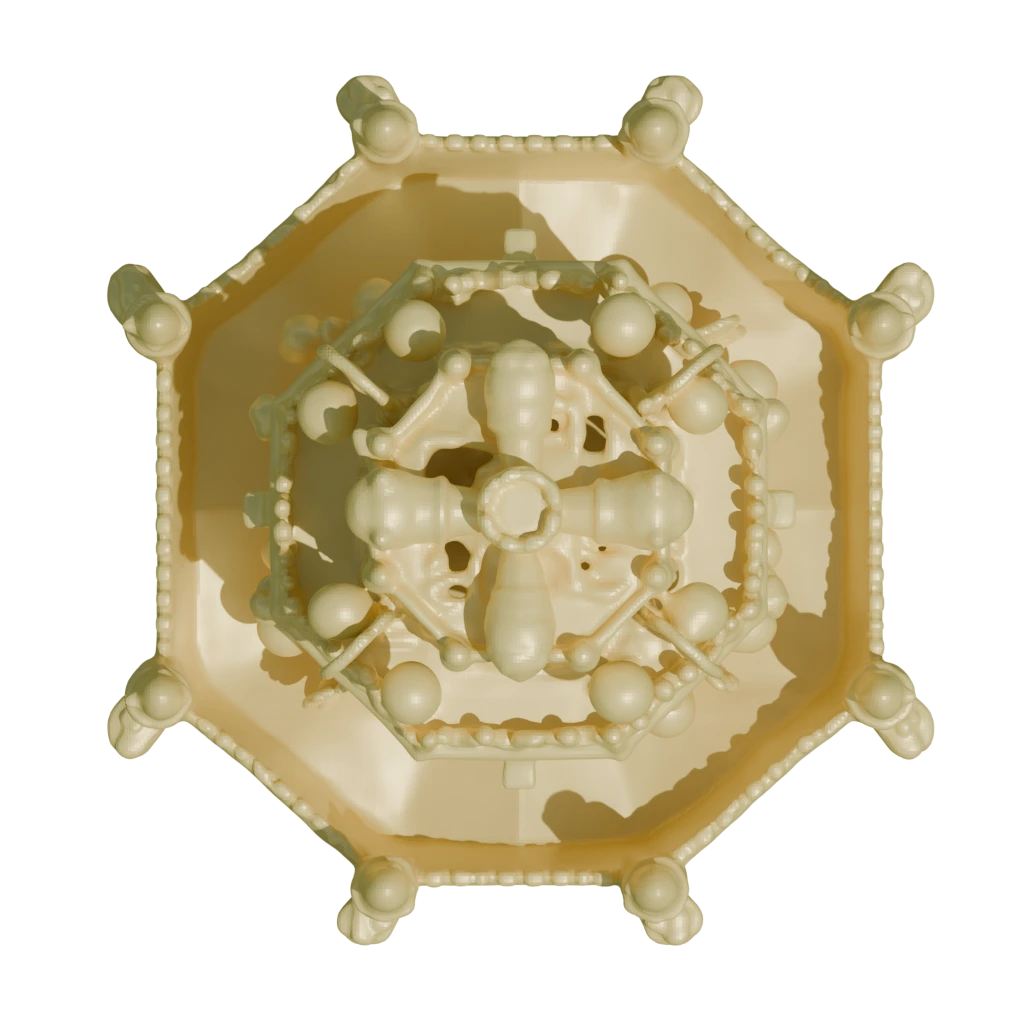

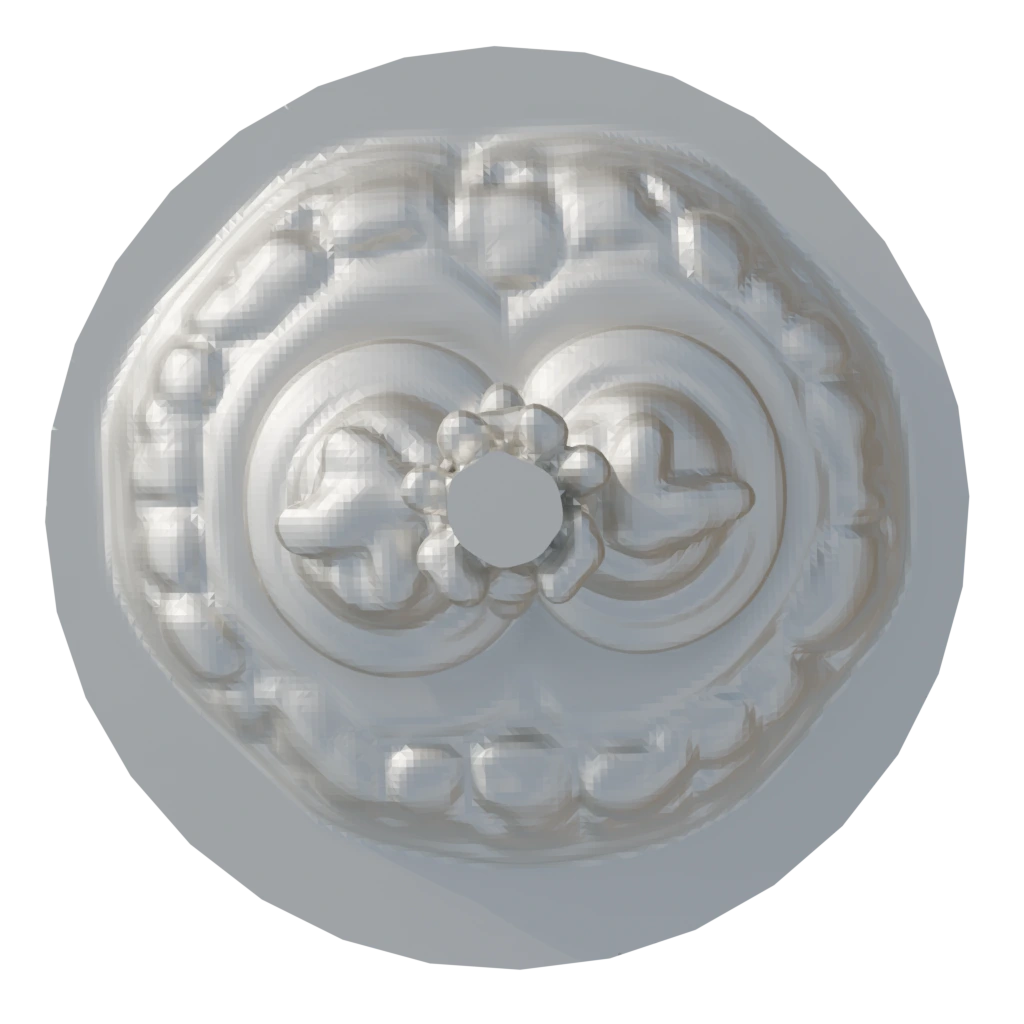

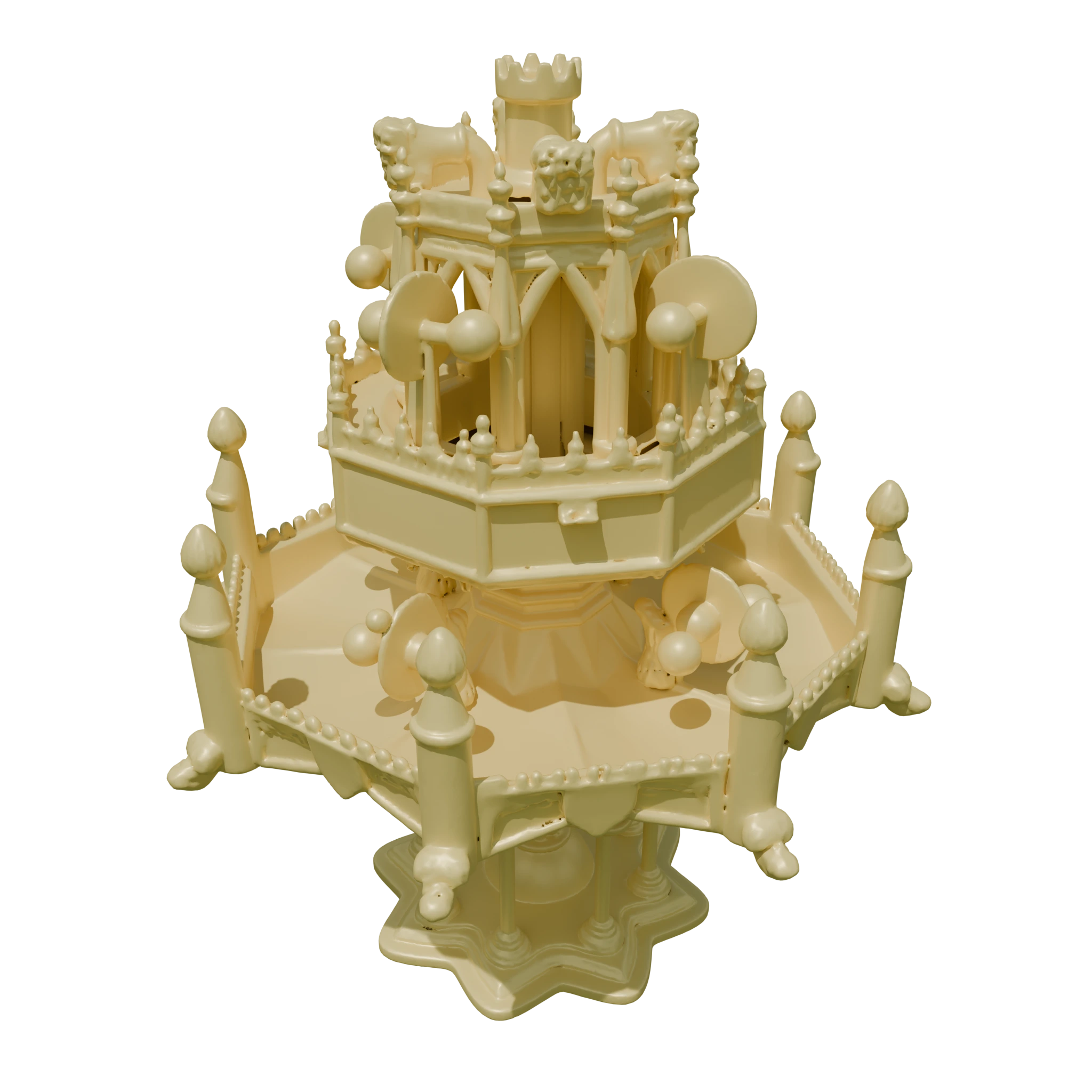

Table fountain result from Hunyuan3D 2.1

Great disdyakis triacontahedron input image

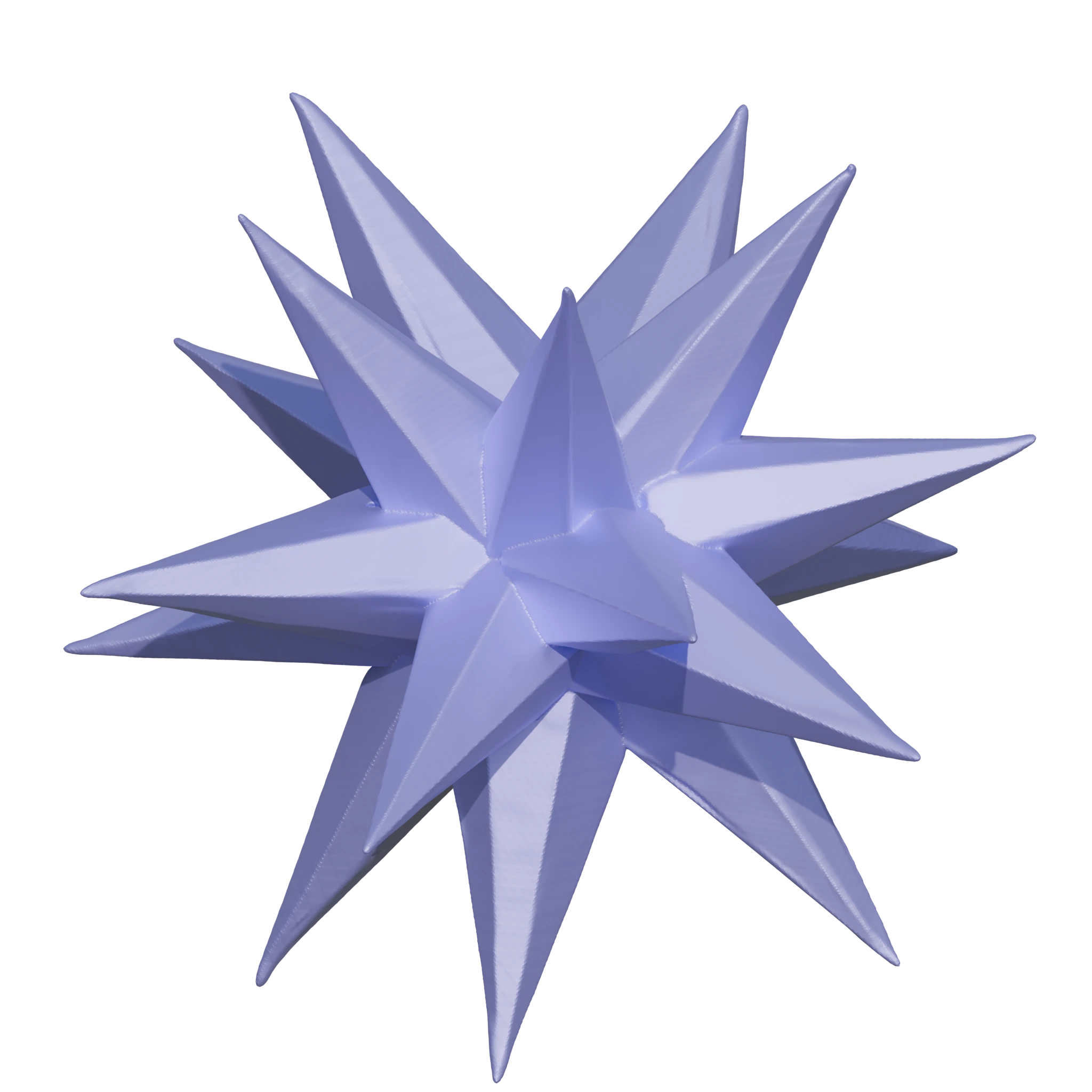

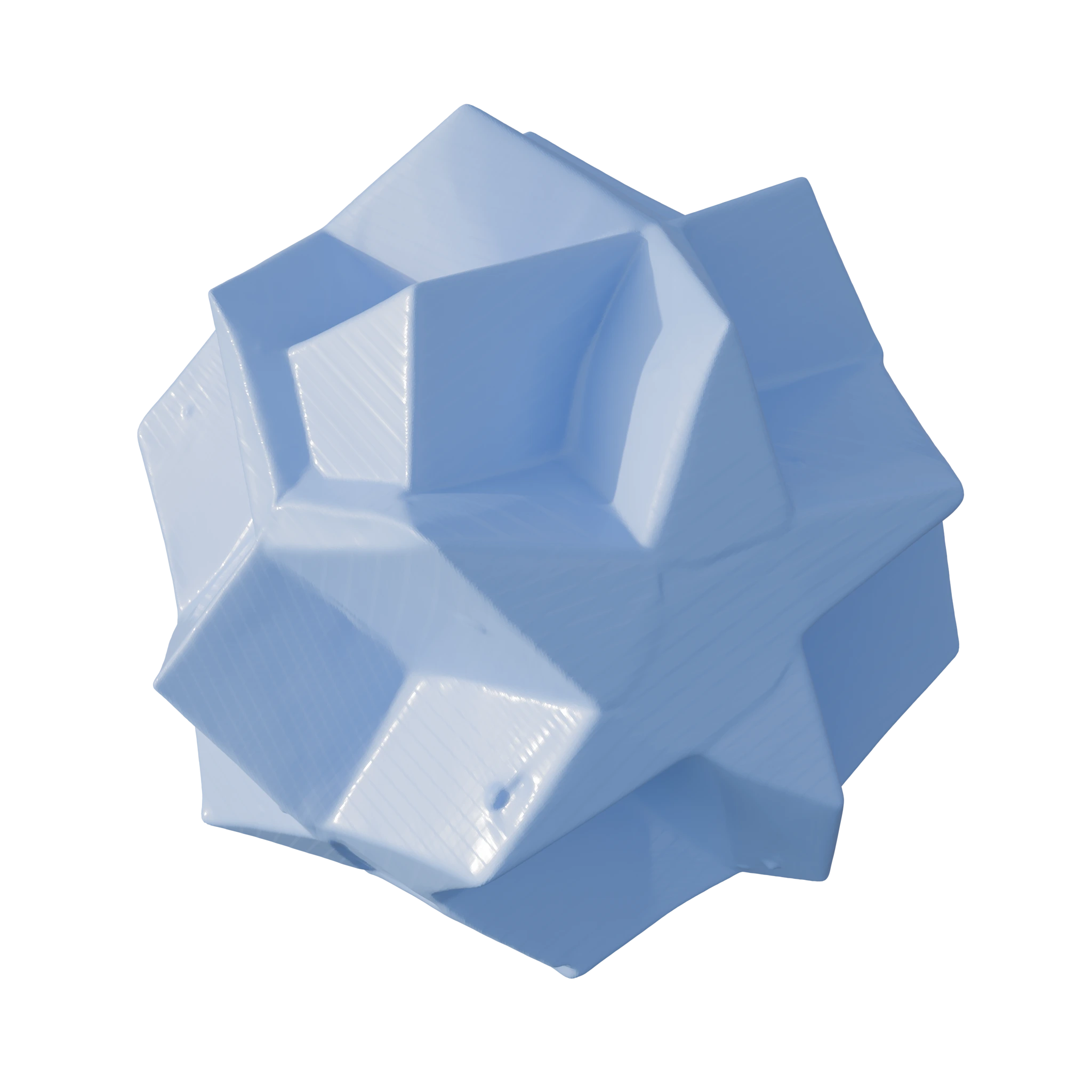

Great disdyakis triacontahedron result from TripoSG

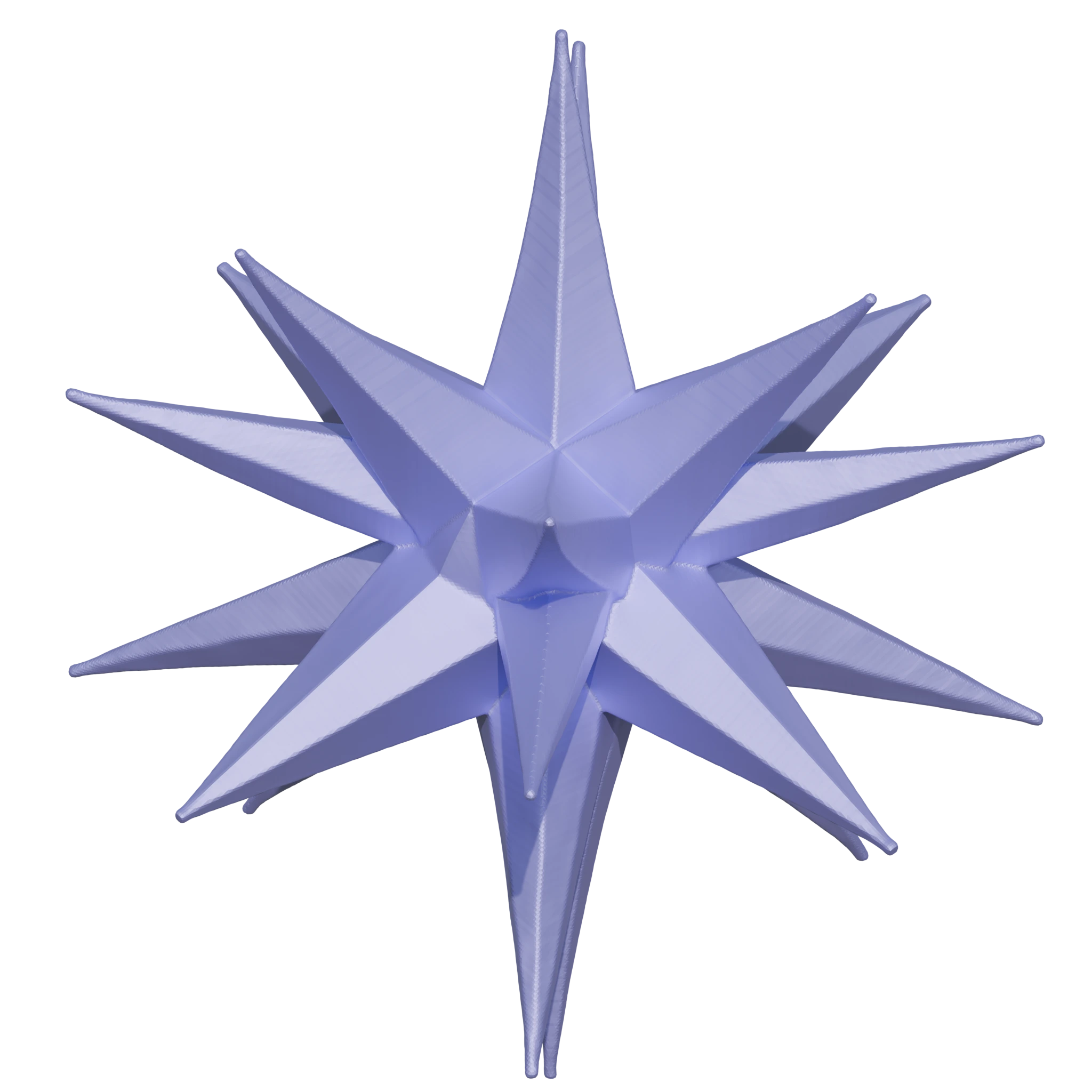

Great disdyakis triacontahedron result from Hunyuan3D 2.1

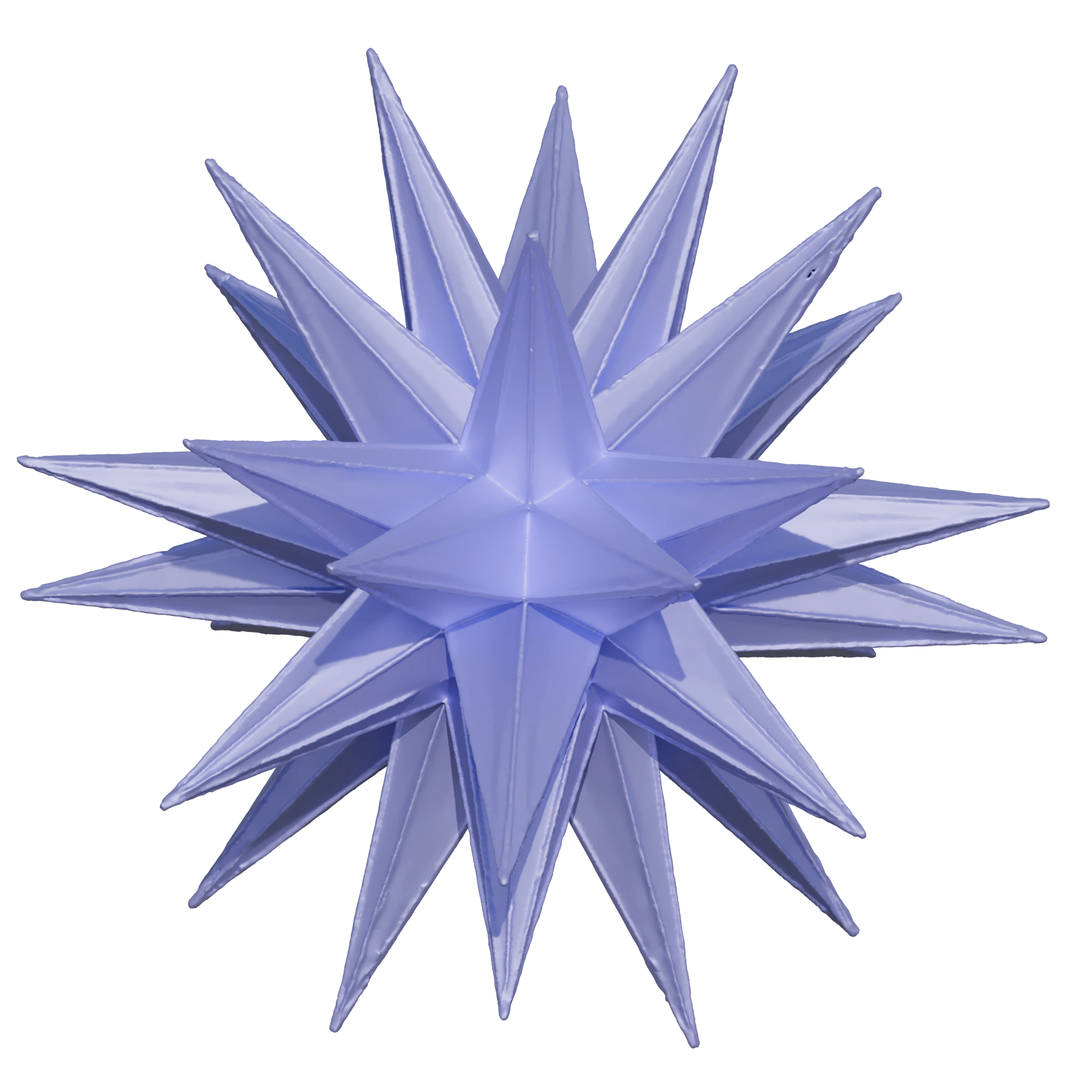

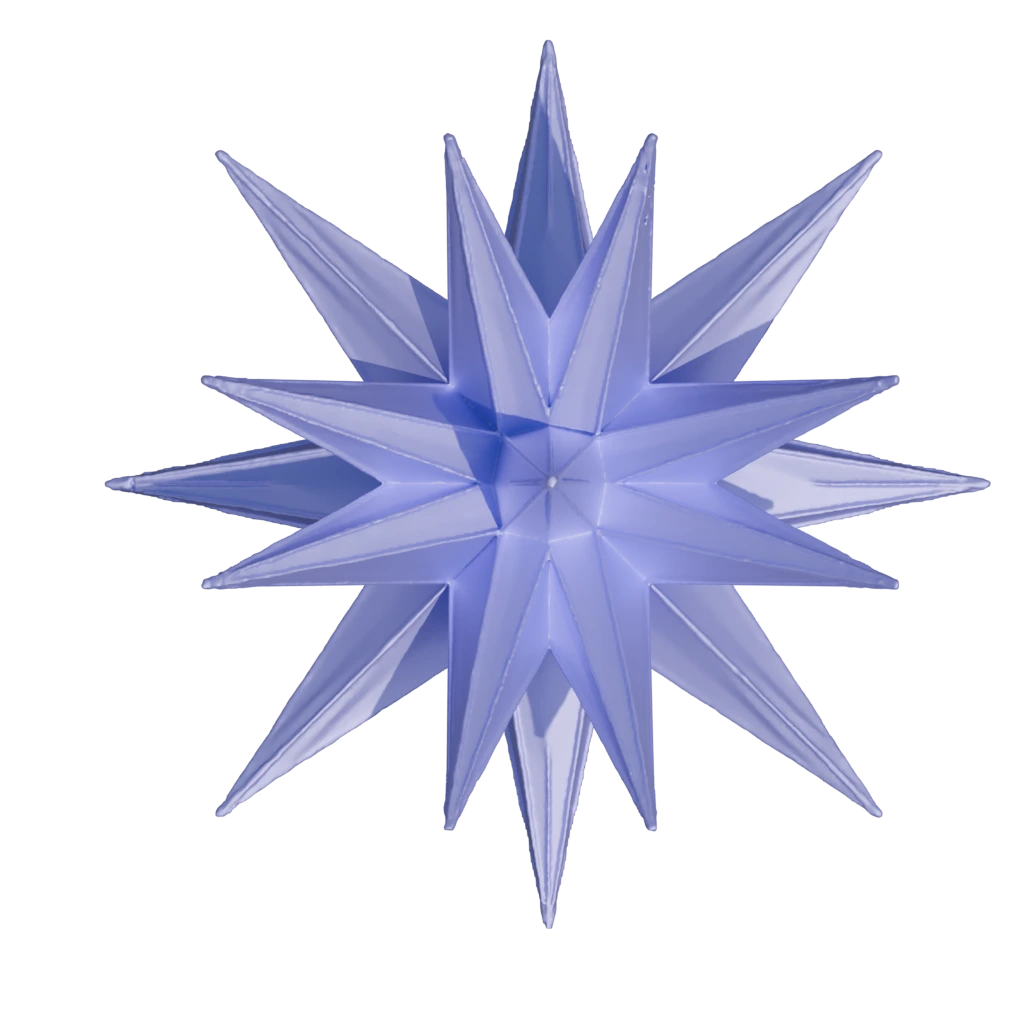

Great disdyakis triacontahedron result from TRELLIS.2

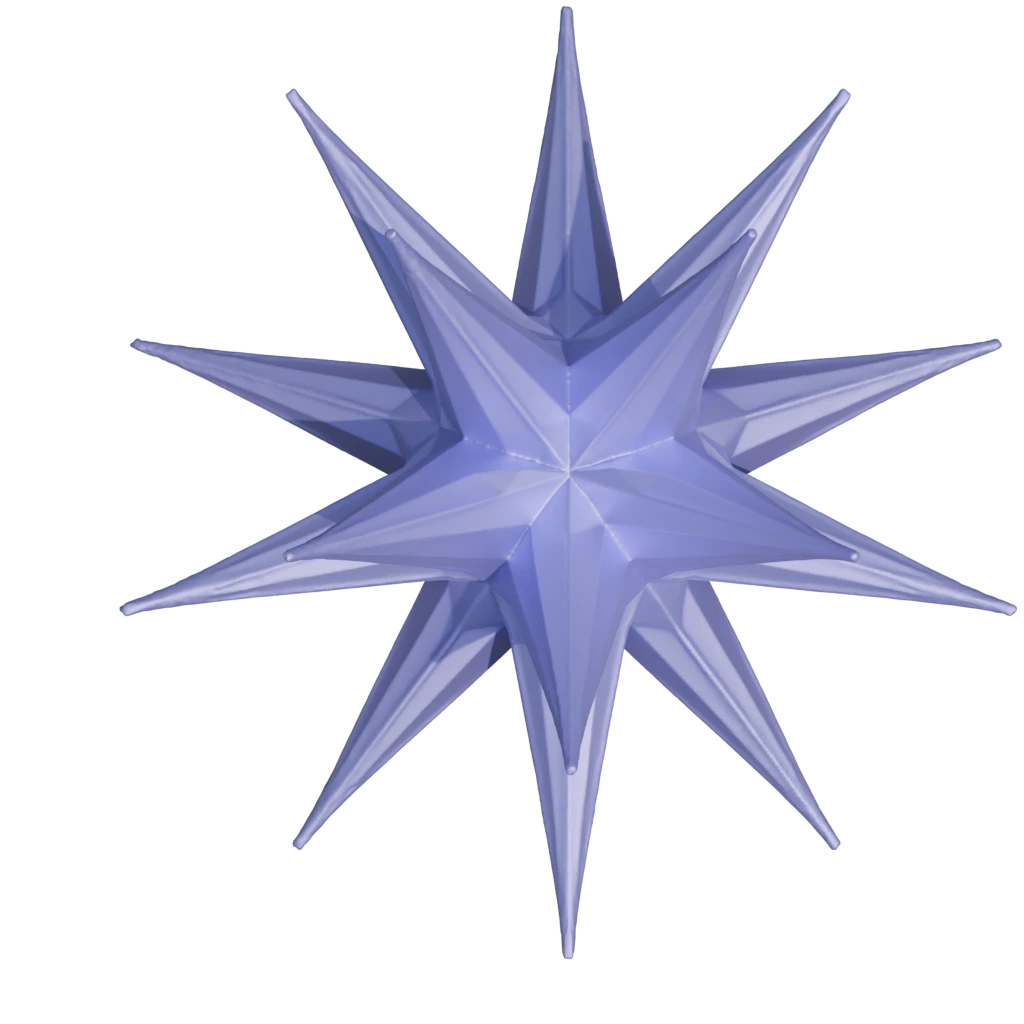

Great disdyakis triacontahedron result from SymTRELLIS

Fold Manipulation

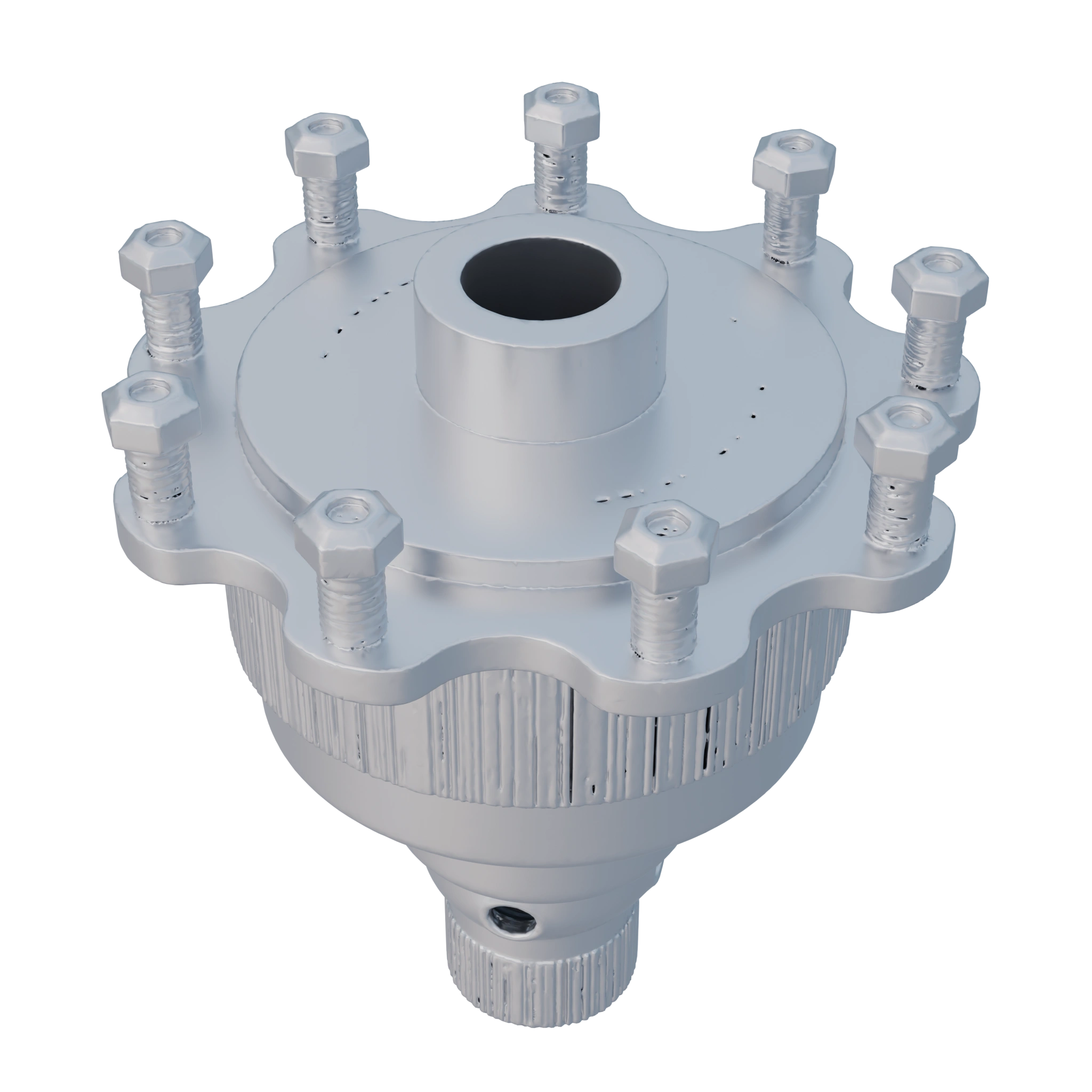

Gear result with 9-fold symmetry — 9 Fold

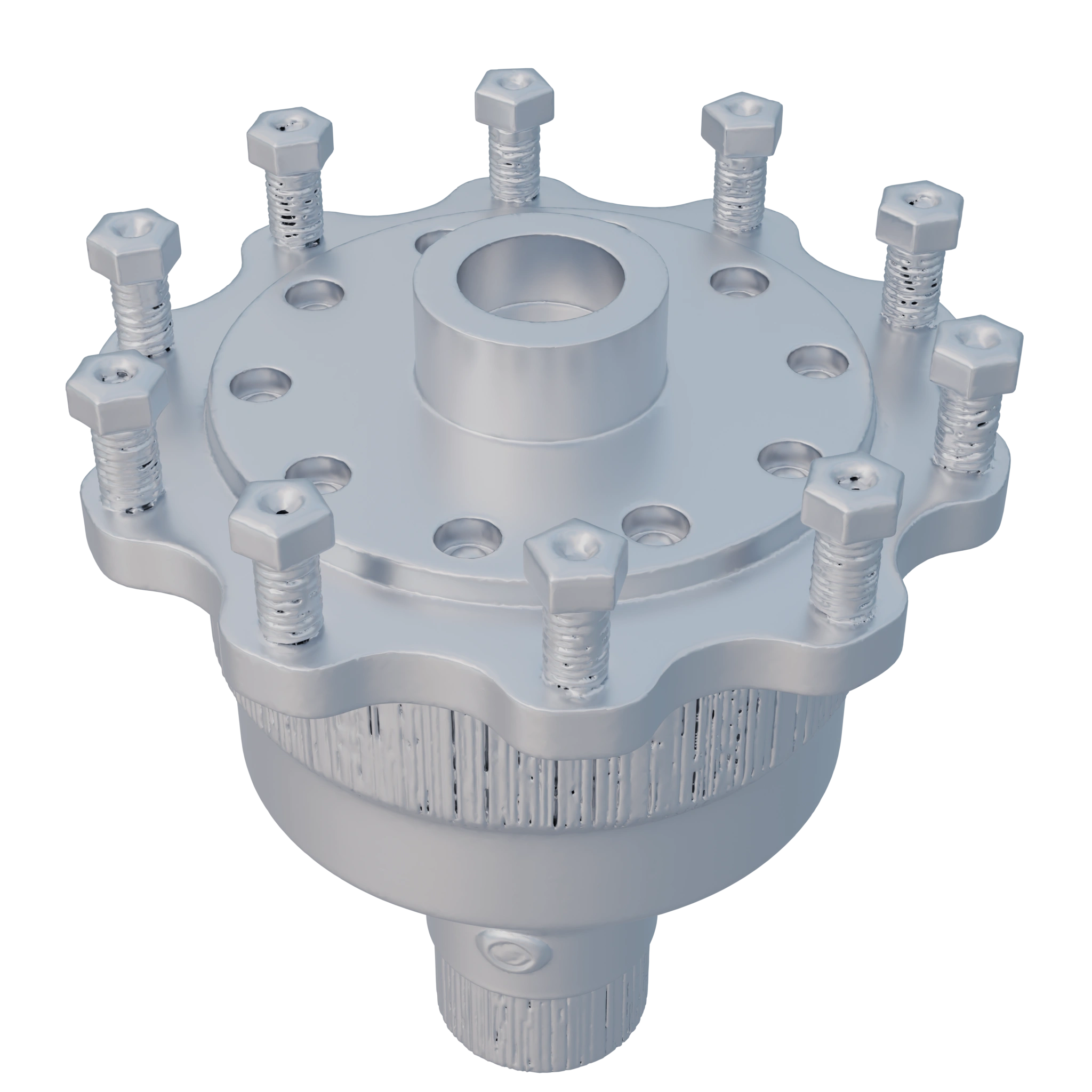

Gear result with 10-fold symmetry — 10 Fold

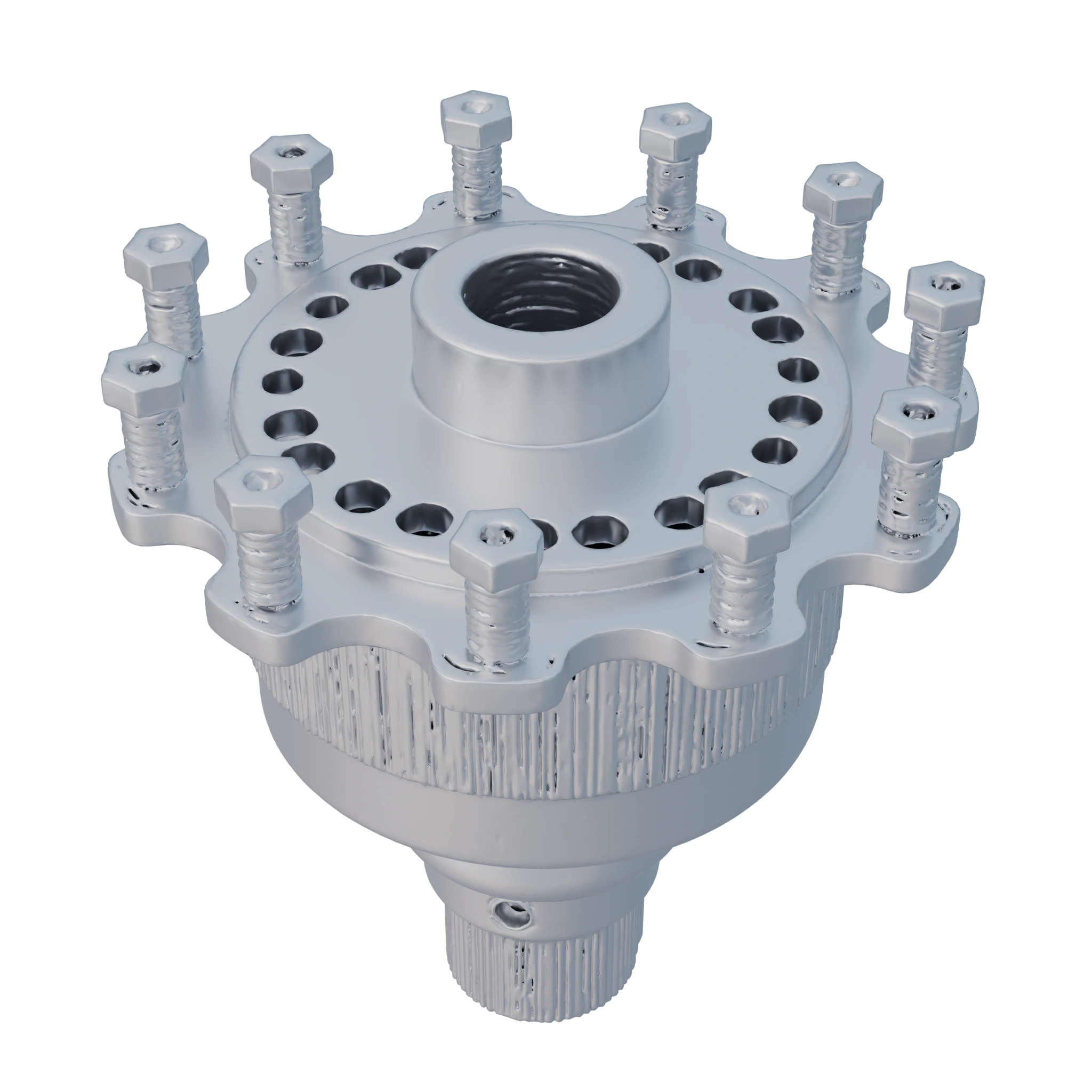

Gear result with 11-fold symmetry — 11 Fold

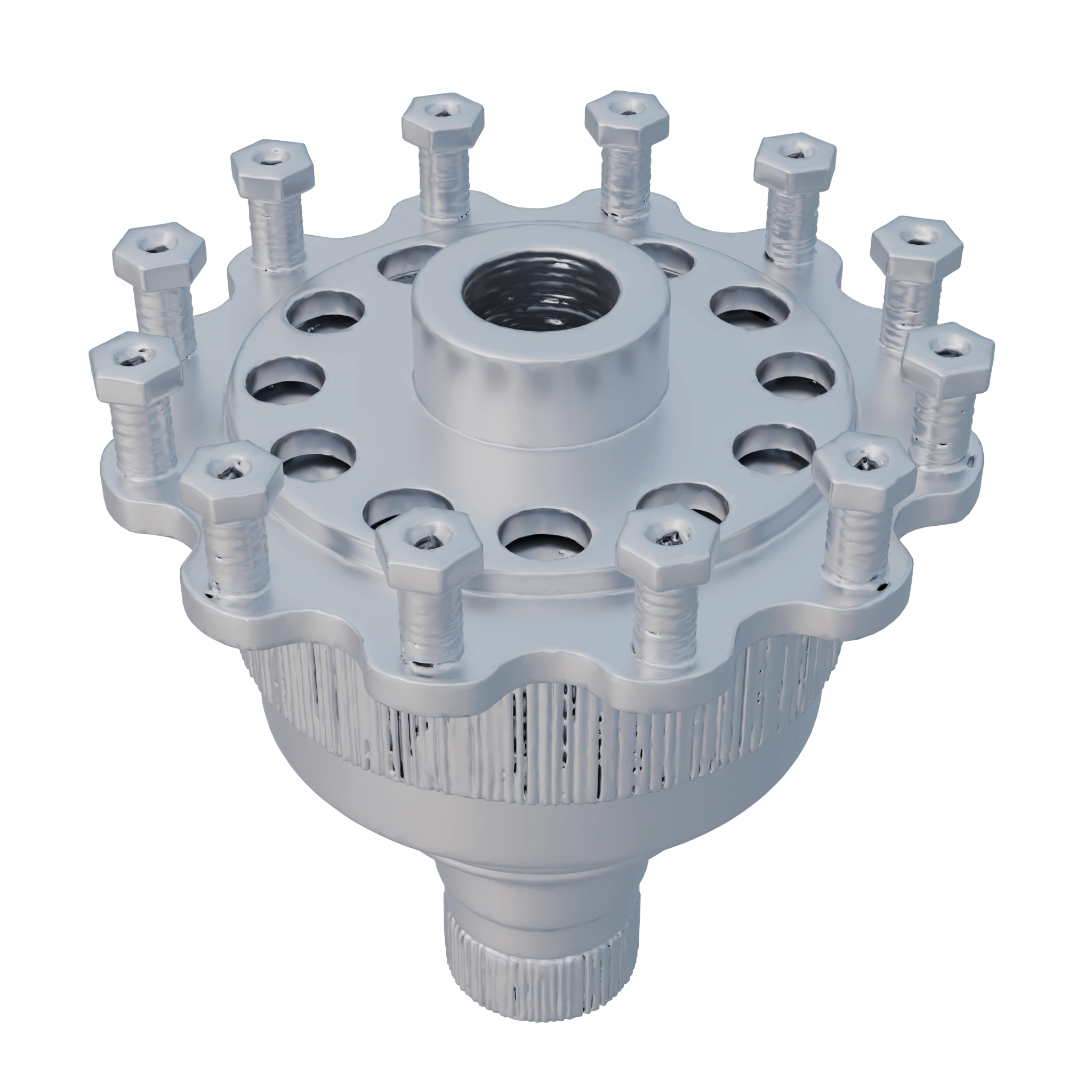

Gear result with 12-fold symmetry — 12 Fold

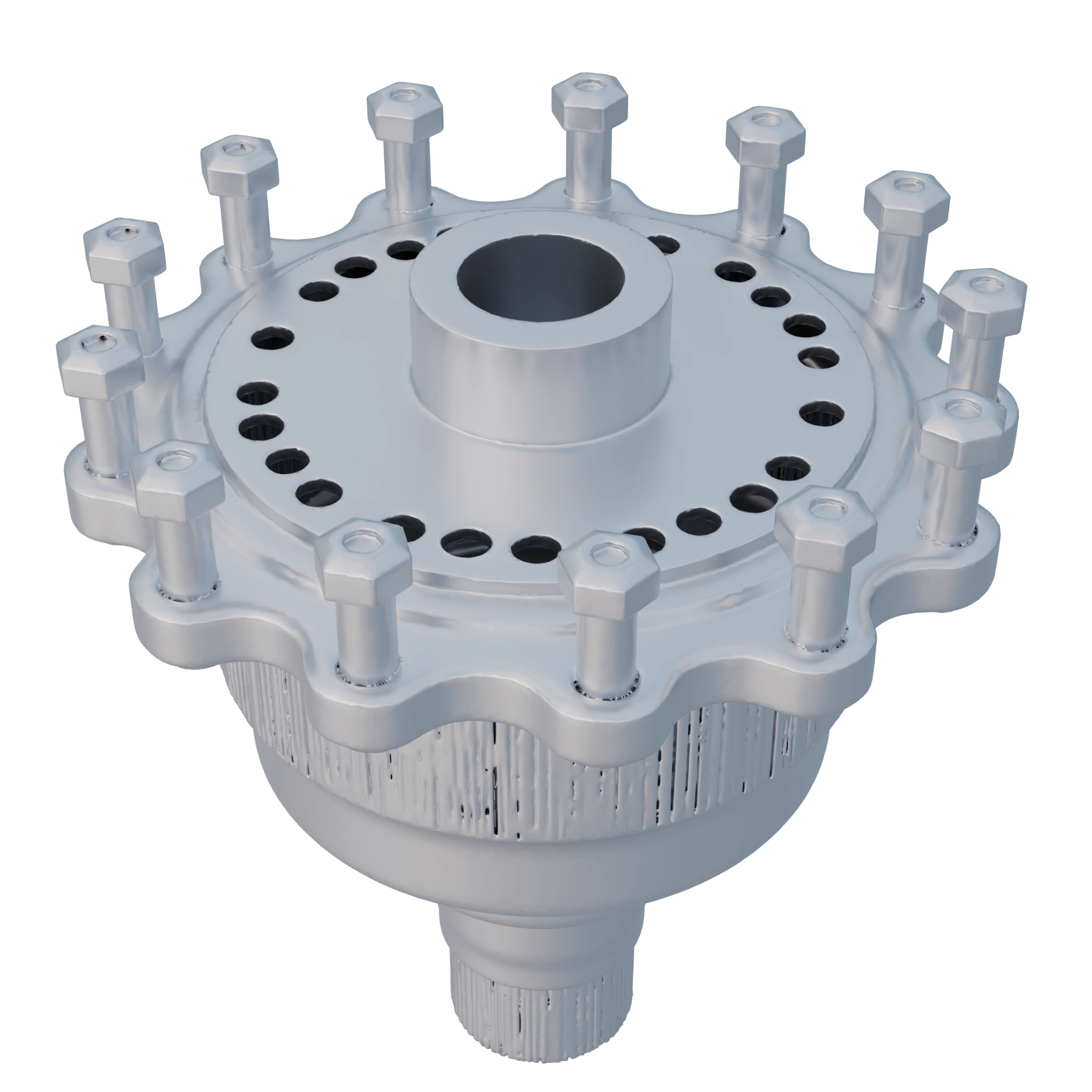

Gear result with 13-fold symmetry — 13 Fold

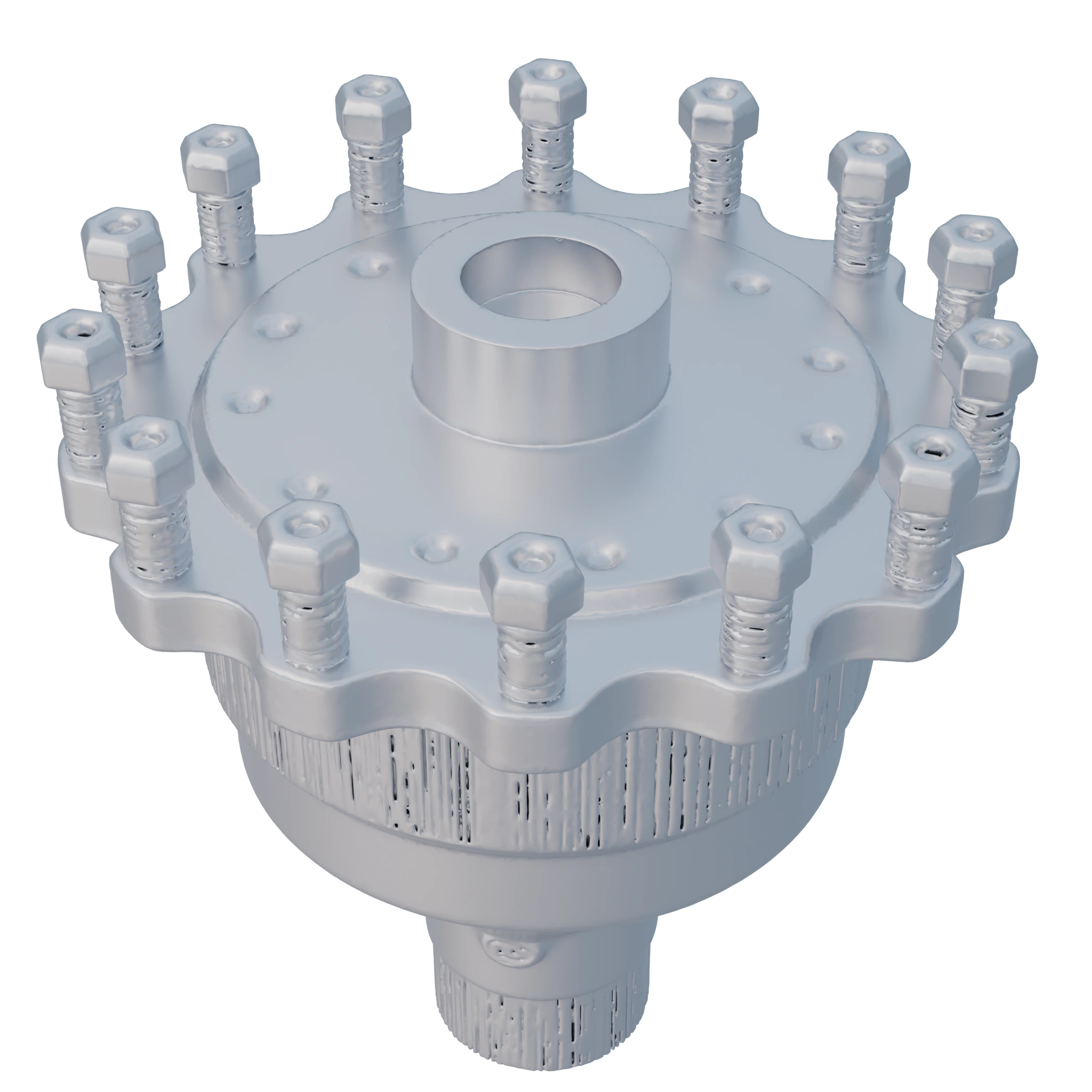

Gear result with 14-fold symmetry — 14 Fold

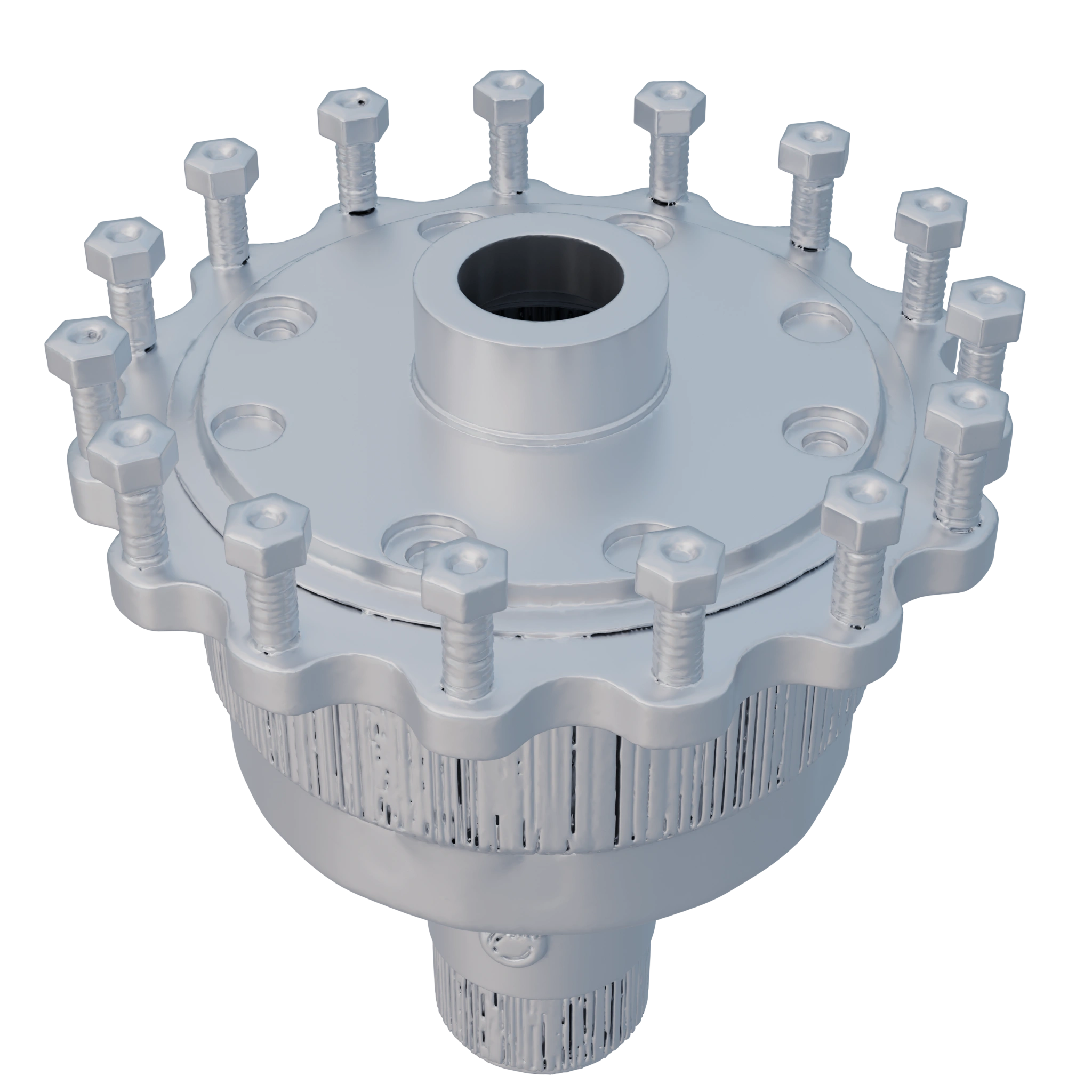

Gear result with 15-fold symmetry — 15 Fold

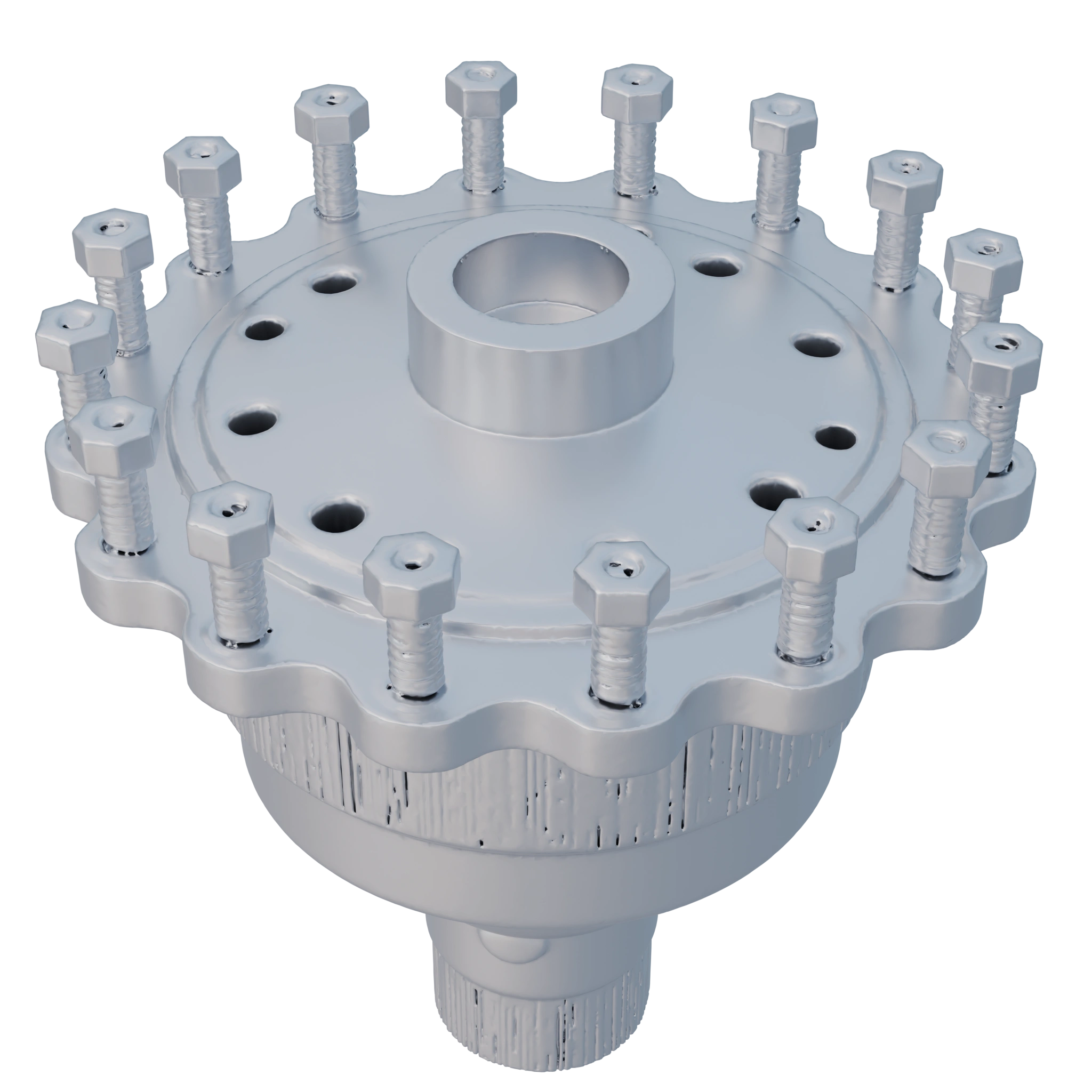

Gear result with 16-fold symmetry — 16 Fold

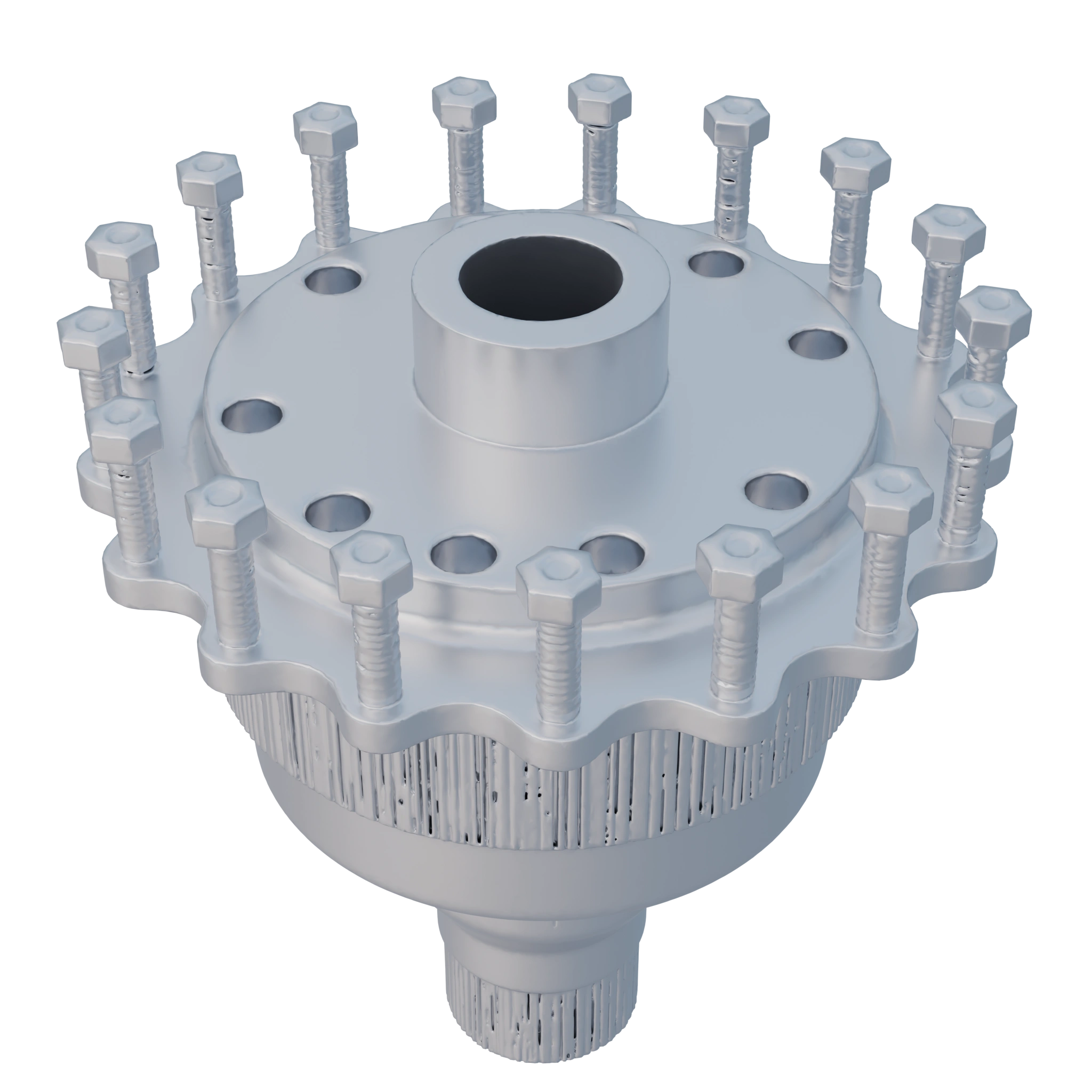

Gear result with 17-fold symmetry — 17 Fold

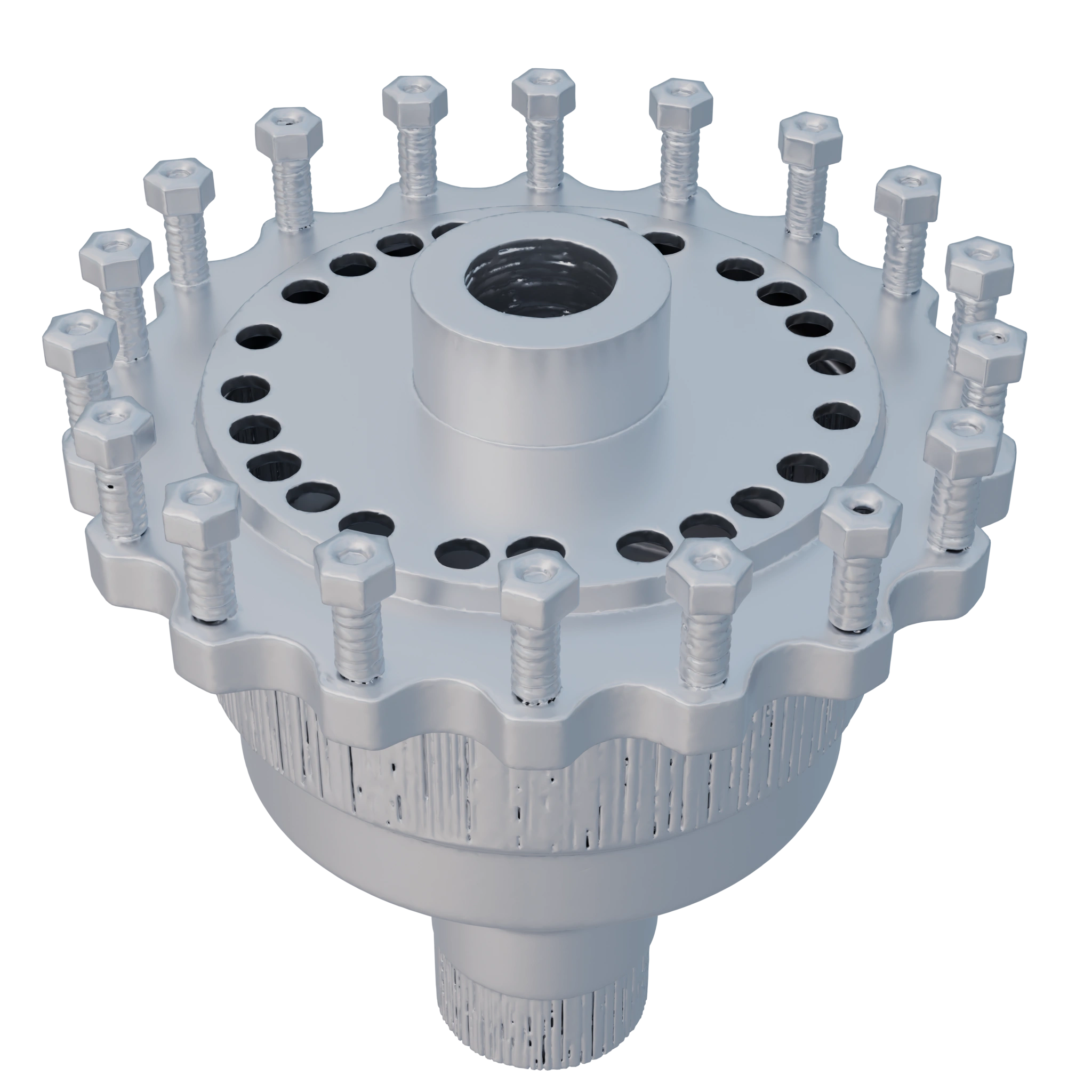

Gear result with 18-fold symmetry — 18 Fold

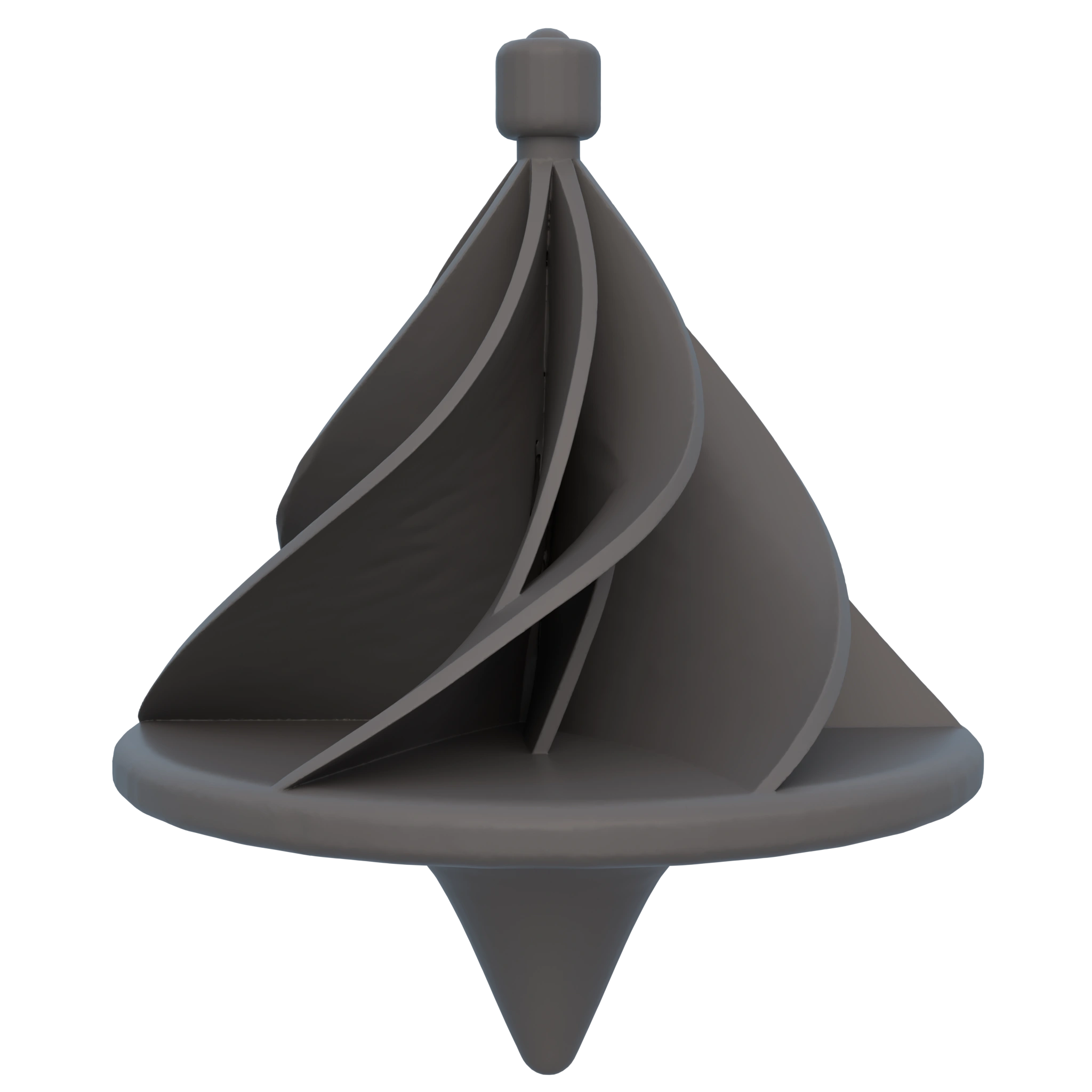

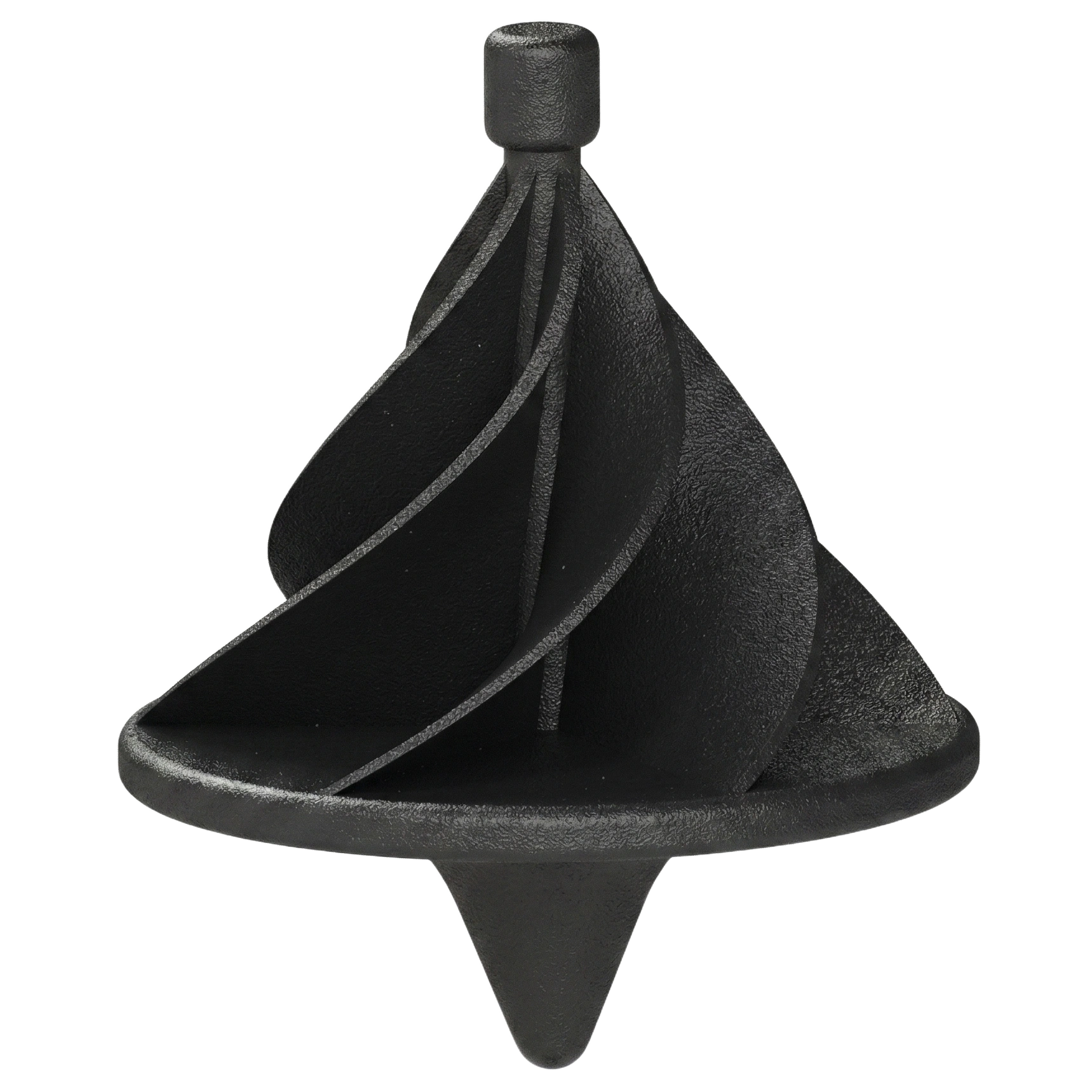

Spinning top result from TRELLIS.2 — TRELLIS.2

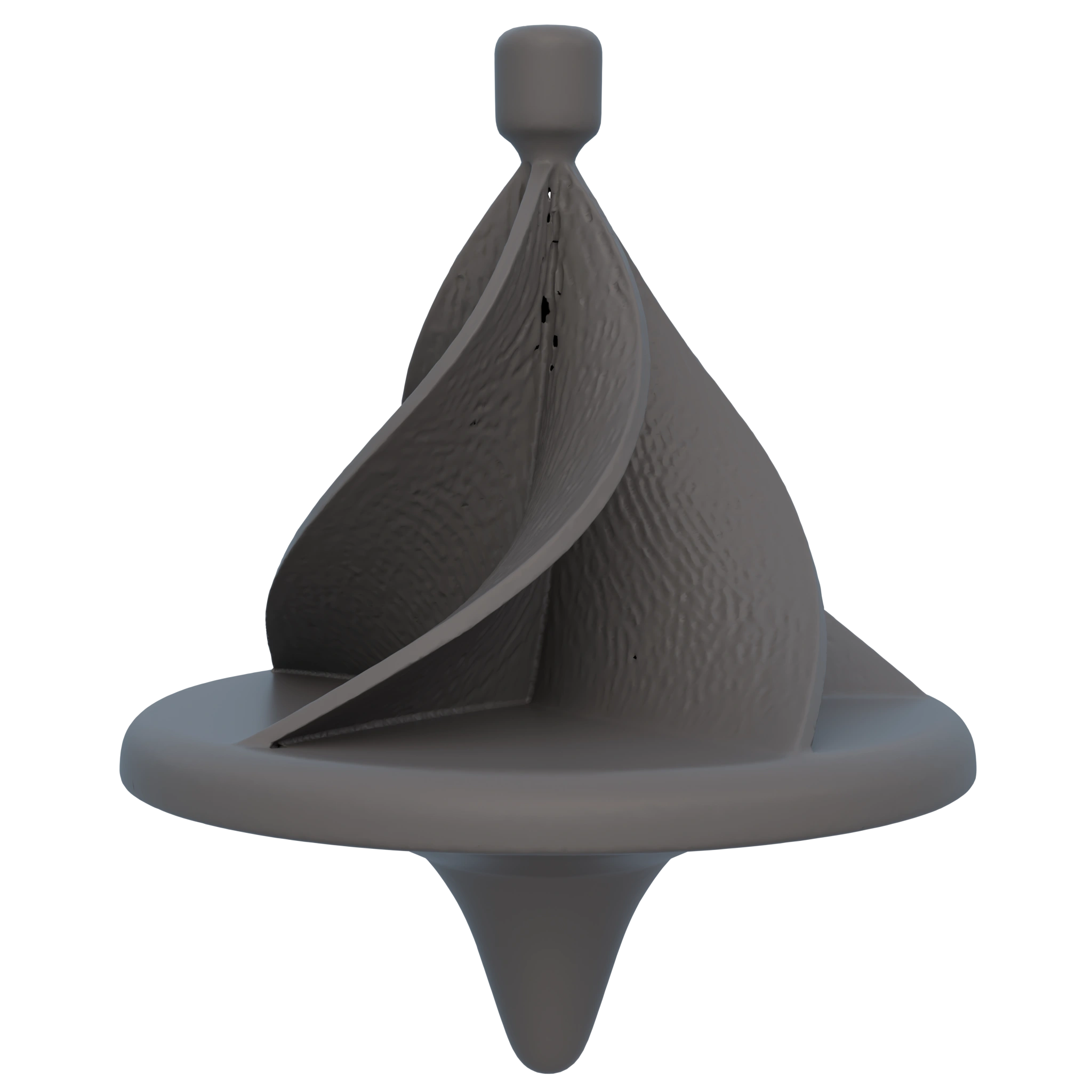

Spinning top result with 5-fold symmetry — 5 Fold

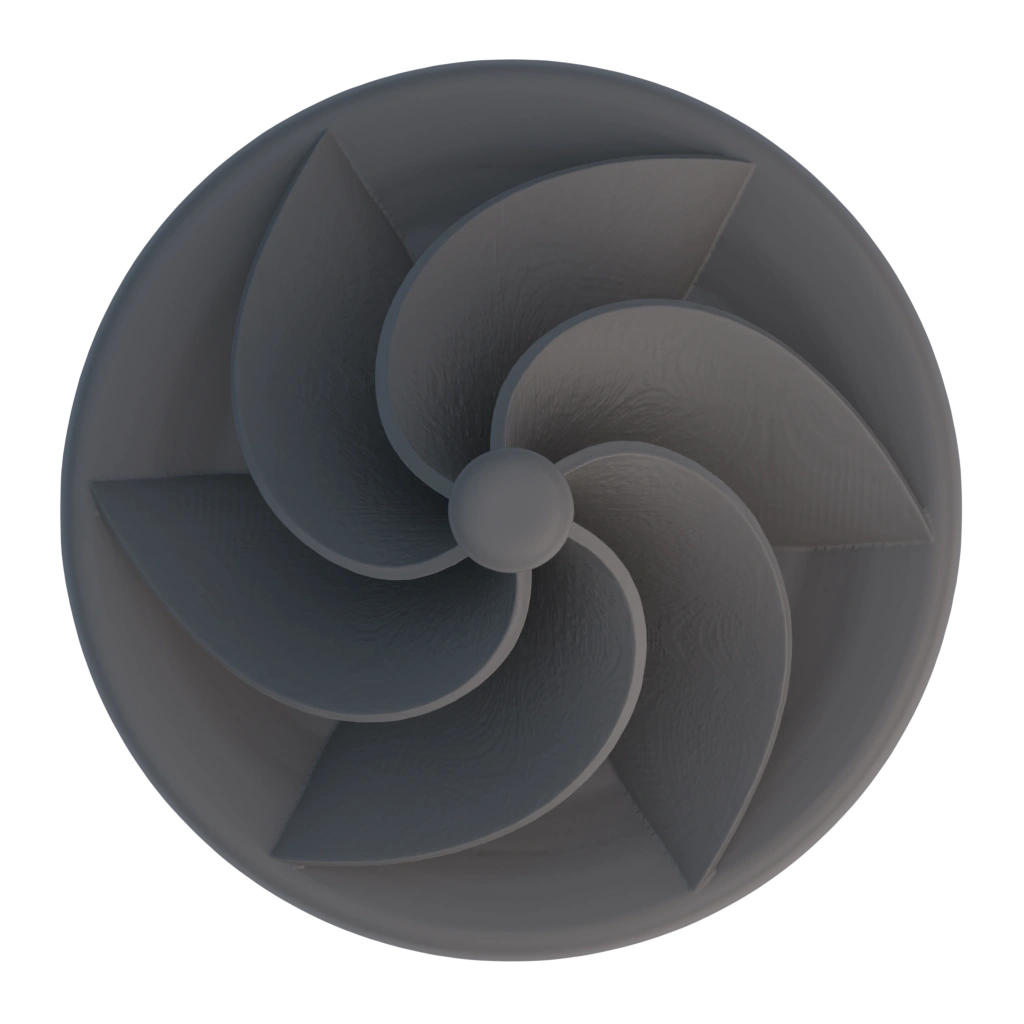

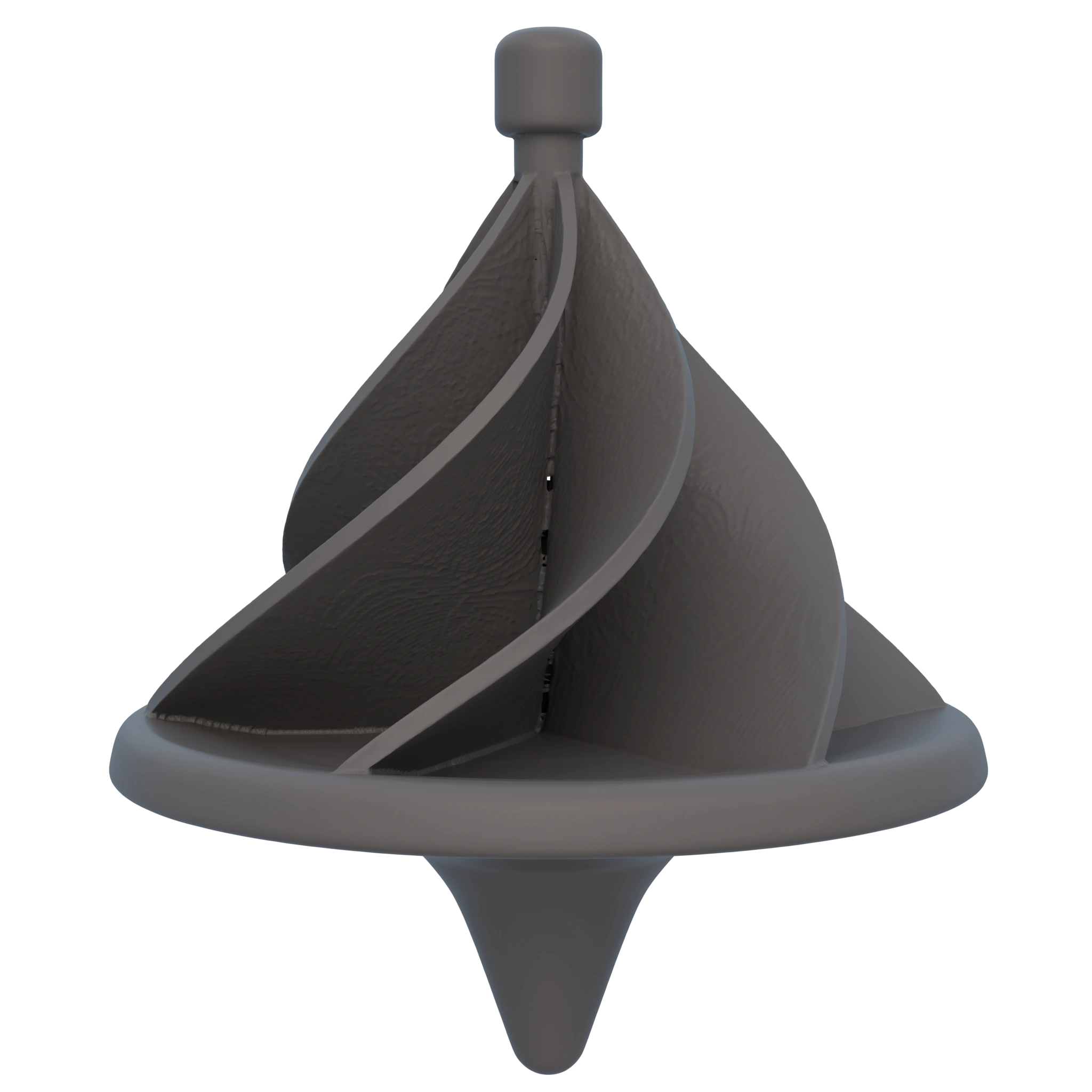

Spinning top result with 6-fold symmetry — 6 Fold

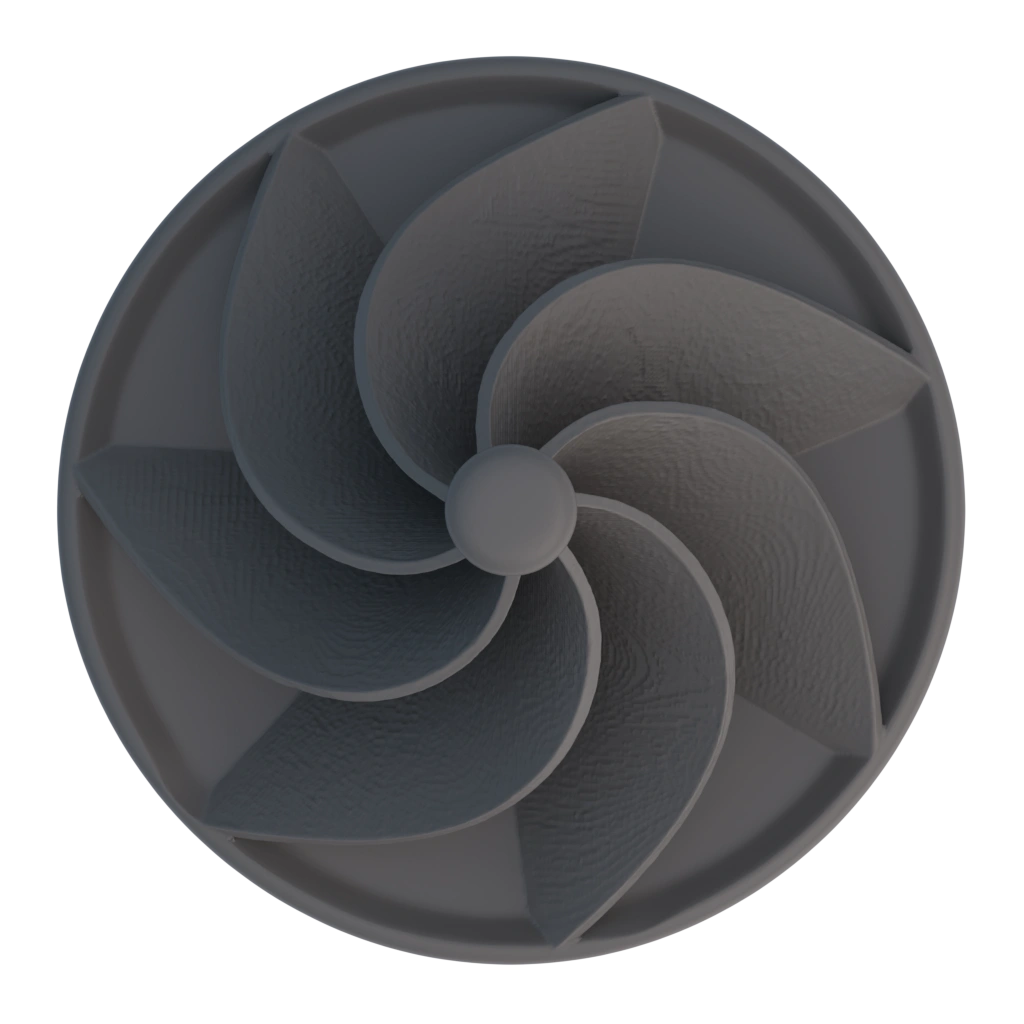

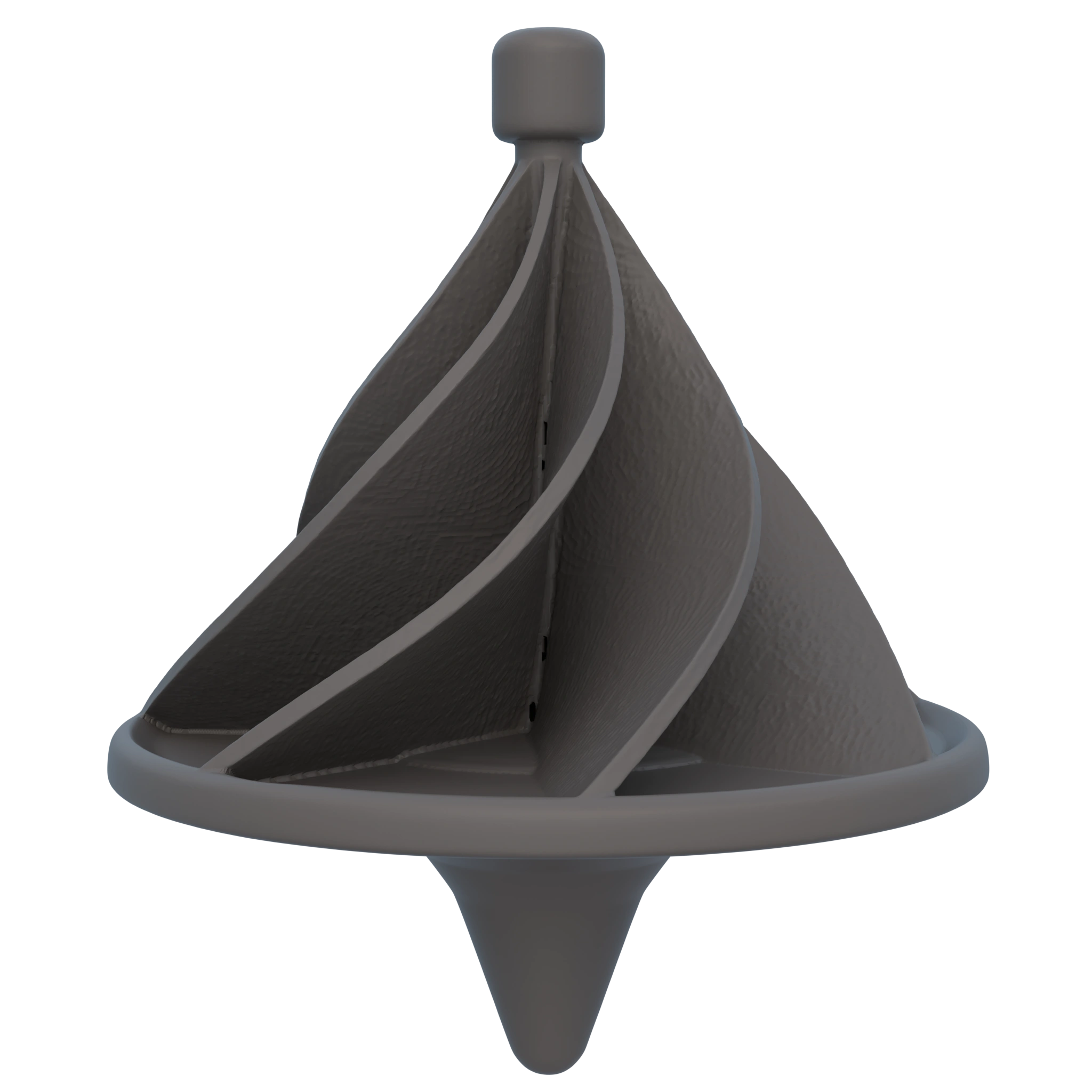

Spinning top result with 7-fold symmetry — 7 Fold

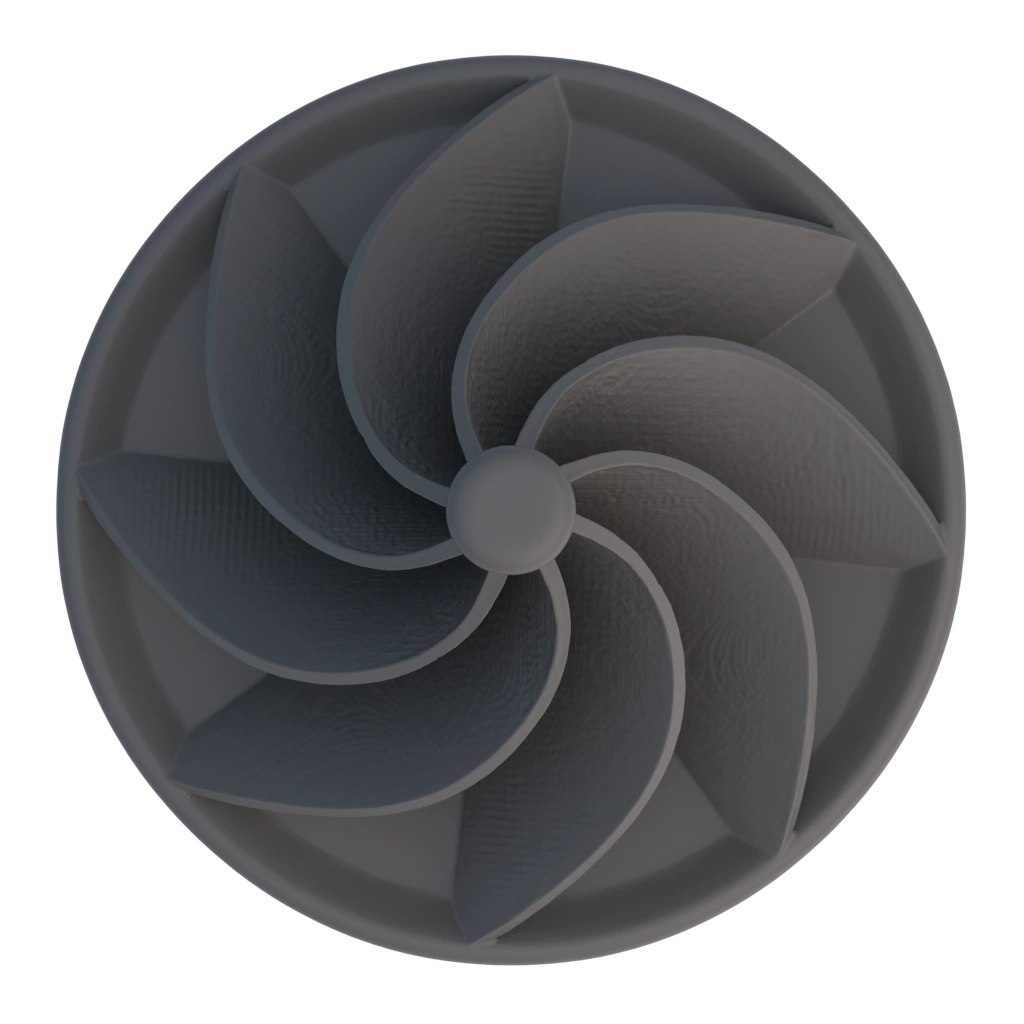

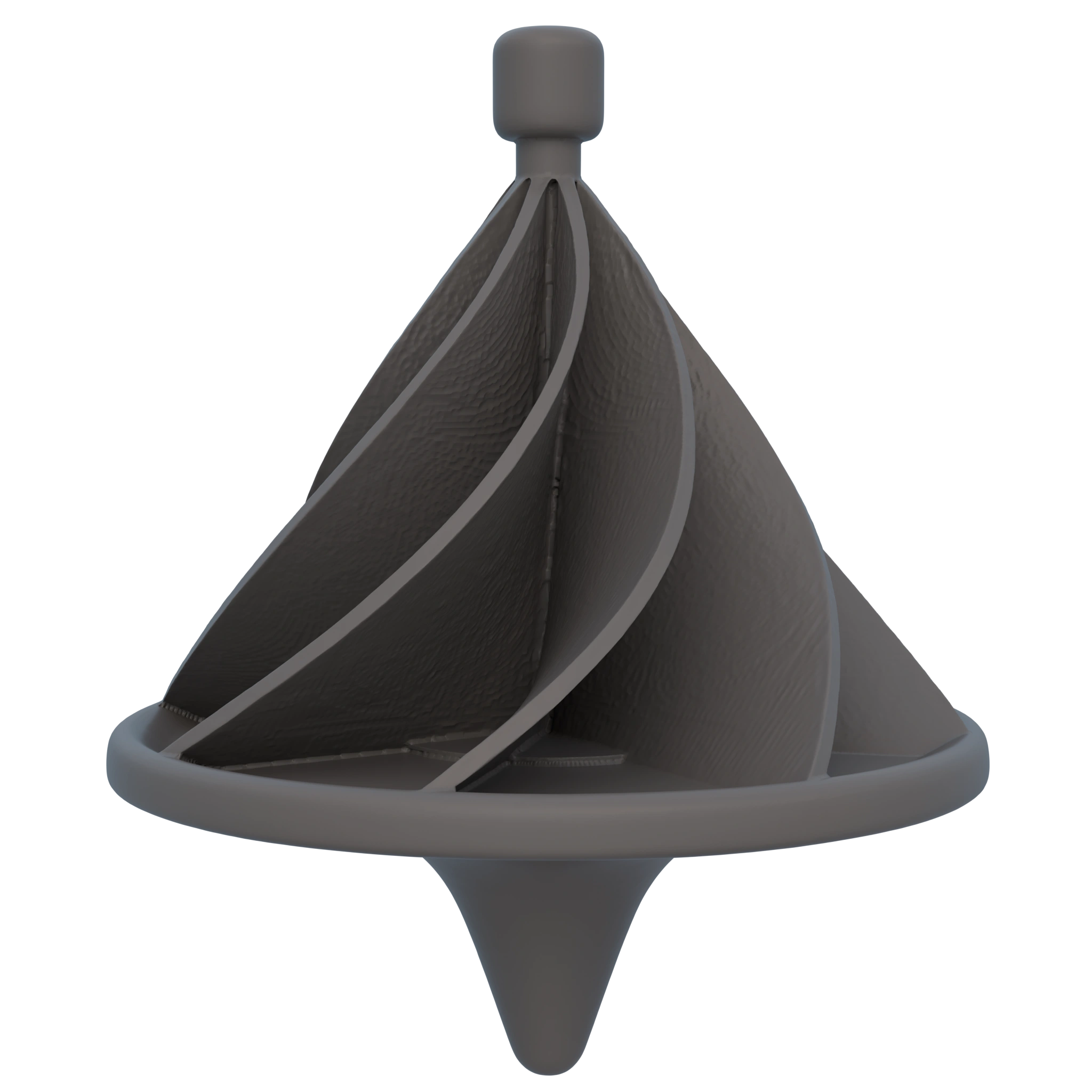

Spinning top result with 8-fold symmetry — 8 Fold

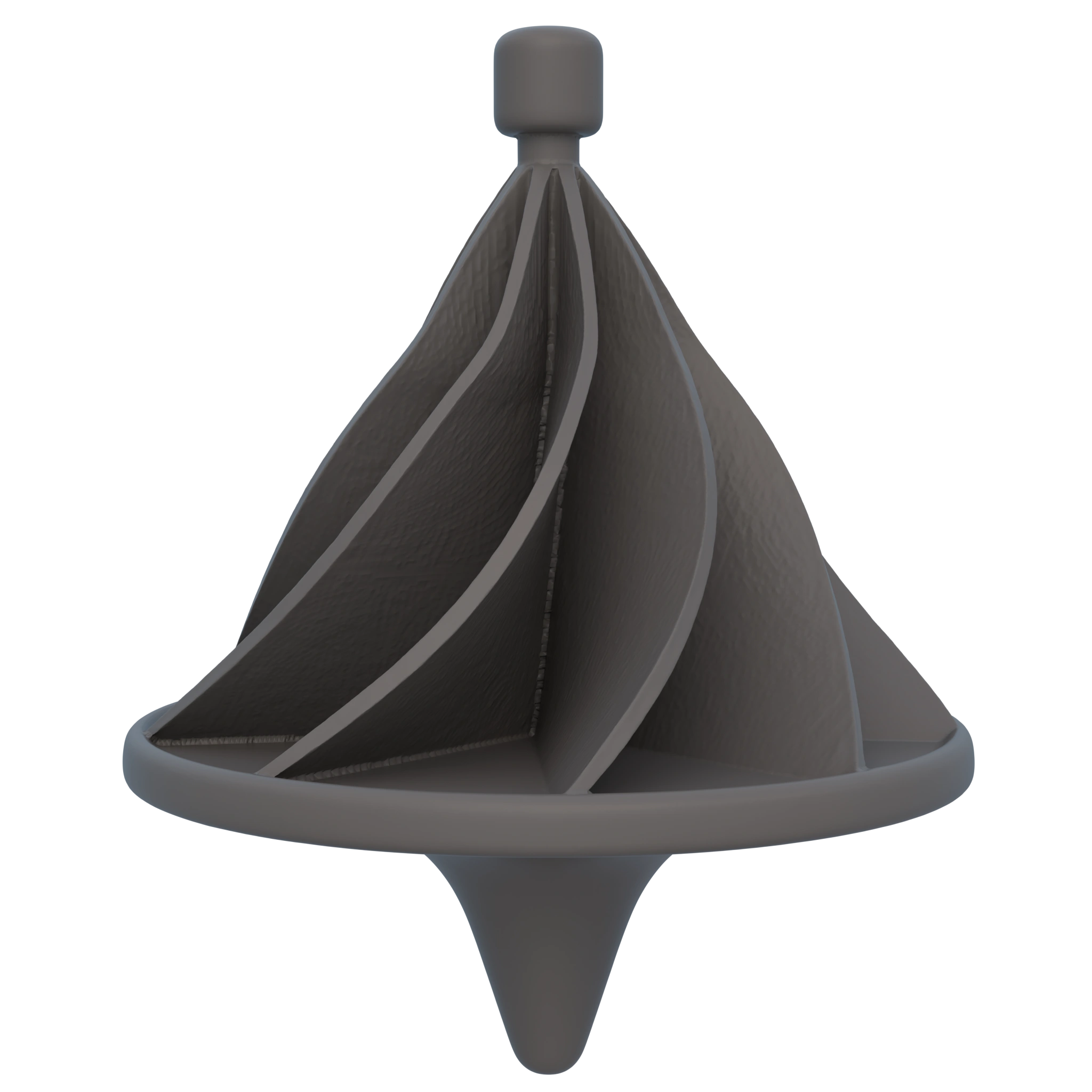

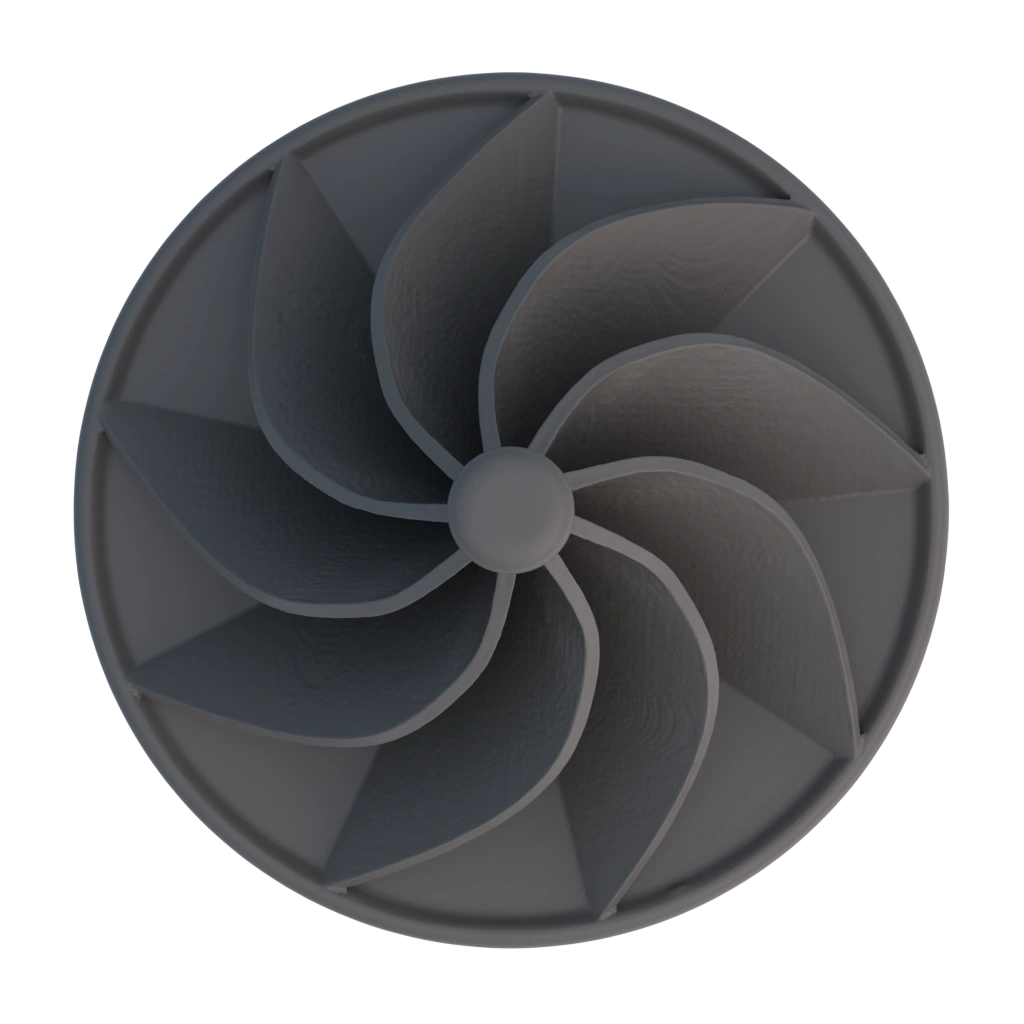

Spinning top result with 9-fold symmetry — 9 Fold

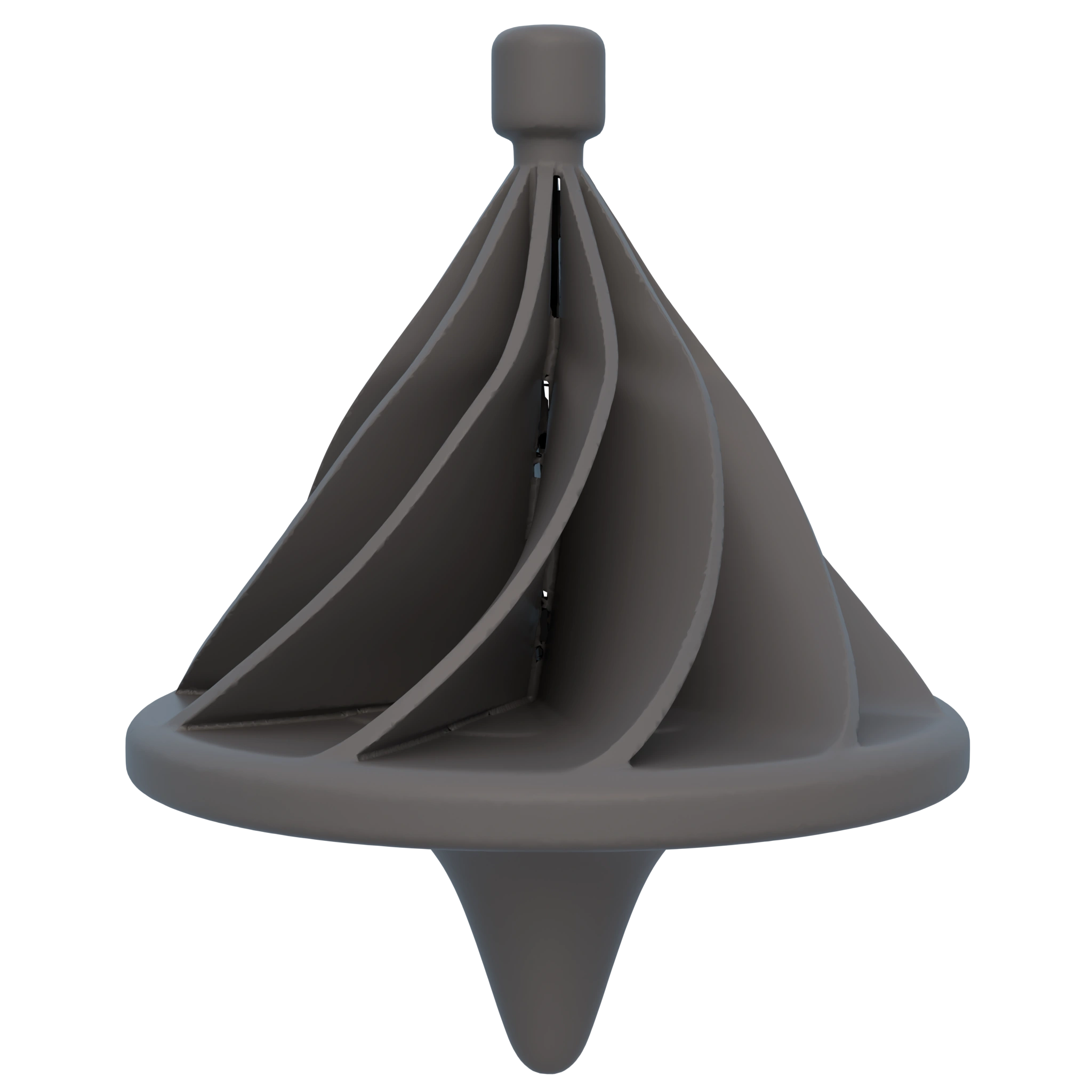

Spinning top result with 10-fold symmetry — 10 Fold

BibTeX

@misc{ji2026symtrellis,
  title         = {SymTRELLIS: Symmetry-Enforced Voxel Latents for 3D Generation},
  author        = {Guangda Ji and Qimin Chen and Qinchan Li and Mingrui Zhao and Kai Wang and Hao Zhang},
  year          = {2026},
  eprint        = {2606.04108},
  archivePrefix = {arXiv},
  primaryClass  = {cs.GR},
  url           = {https://arxiv.org/abs/2606.04108},
}
